Wall-mounted basin mixer with pressure-balancing

Ref. 2610EP
Wall-mounted mechanical mixer with BIOCLIP spout
Wall-mounted basin mixer with pressure-balancing

Presentation

DESCRIPTION

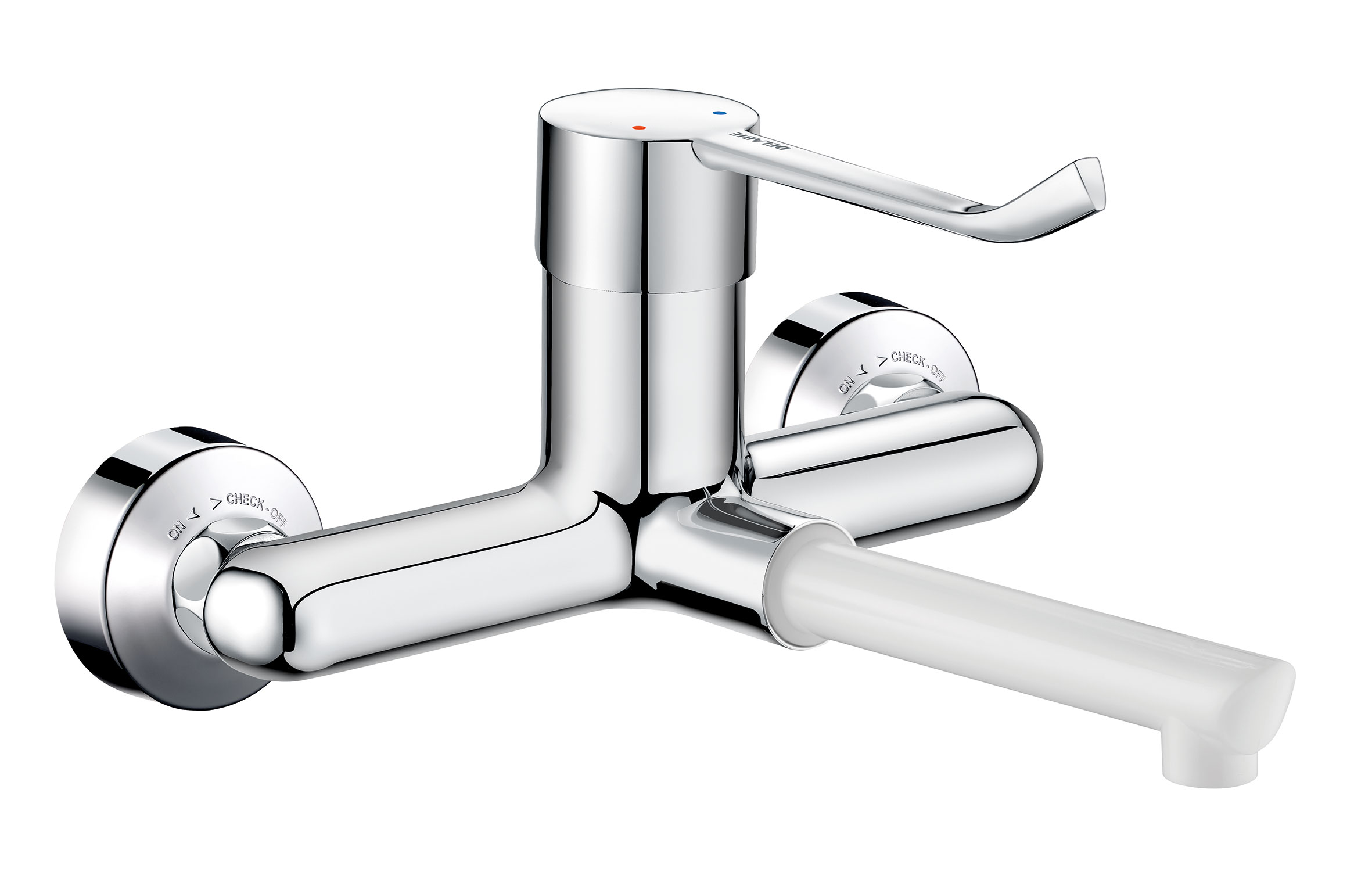

Wall-mounted basin mixer with pressure-balancing

Ref. 2610EP
Provisional availability 1st half
2024
.
Please contact the sales office to check availability.
Wall-mounted SECURITHERM basin mixer with pressure-balancing.
Wall-mounted mixer supplied with 1 removable, disposable spout made from recyclable Hostaform® L. 125mm.
Anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate in the system.
Securitouch thermal insulation prevents burns.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Body with narrow pipework with smooth interiors, reduces bacterial development and contains a very low volume of water.
The restricted flow through the pipework considerably reduces the development of biofilm.
Thermal shocks are possible without removing the lever or shutting off the cold water supply.
Flow rate limited to 5 lpm at 3 bar.
Chrome-plated brass body.
No manual contact thanks to Hygiene control lever L. 150mm.
Mixer supplied with offset STOP/CHECK M1/2" M3/4" wall connectors, suitable for hospitals.
Recommended installation height: 110 - 200mm above the top of the basin.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

EP: HW flow rate reduced if CW supply fails

Confort - Ergonomie - Déclenchement souple

Securitouch: thermal insulation prevents burns

Sécurité anti-brûlure

Thermal shock without removing the control lever

Hygiène - Anti-bactérien - BIOSAFE

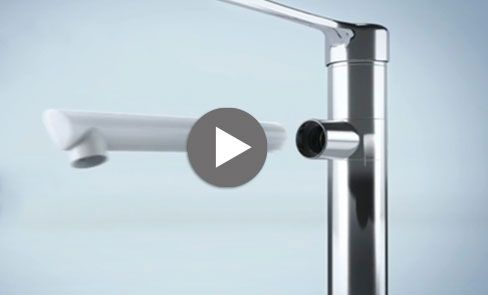

Removable spout: reduces bacterial development

Characteristics

TECHNICAL CHARACTERISTICS

Wall-mounted basin mixer with pressure-balancing

Ref. 2610EP
Technology SECURITHERM EP mixer, Securitouch
Flow rate 5 lpm at 3 bar
Temperature limiter YES
Finish Chrome-plate brass
Certificates Logo Belgaqua
Warranty 30-Year

Downloads

DOWNLOADS

Wall-mounted basin mixer with pressure-balancing

Ref. 2610EP

To download one or several documents linked to this product, please select the type of file you require :

Infection control: mixer with smooth interior and removable spout
Infection control: mixer with smooth interior and removable spout

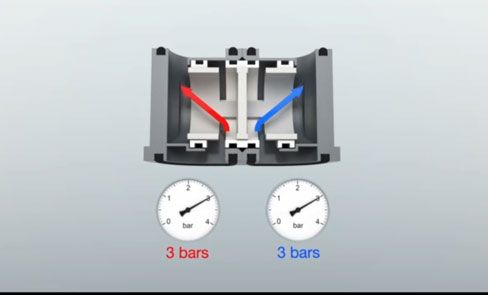

Pressure-balancing mixer: anti-scalding safety and temperature stability
Pressure-balancing mixer: anti-scalding safety and temperature stability
