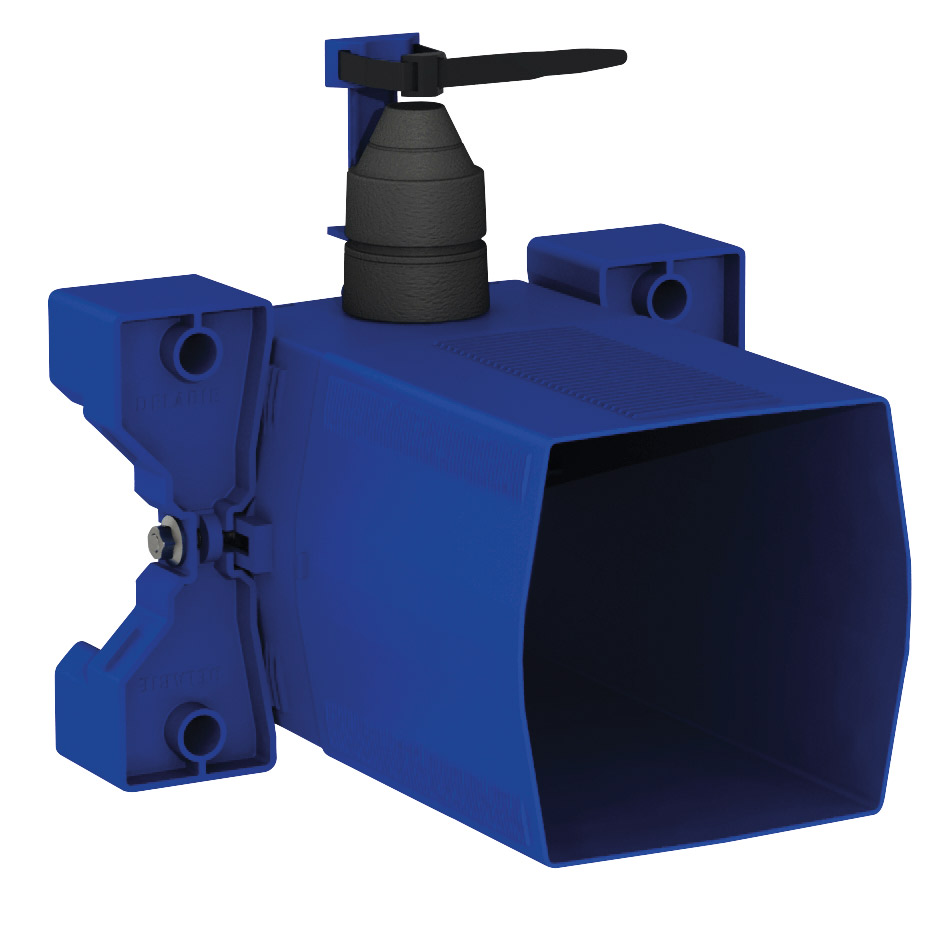

Recessed waterproof housing for TEMPOMATIC dual control WC

Ref. 464SBOX
Mains supply, Kit 1/2
Recessed waterproof housing for TEMPOMATIC dual control WC

Presentation

DESCRIPTION

Recessed waterproof housing for TEMPOMATIC dual control WC

Ref. 464SBOX
Recessed waterproof housing, kit 1/2:
Flush system without cistern: directly connected to pipework.
Compatible with 230/6V mains supply (cable and transformer supplied).
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, activation and electronic unit are all integrated and accessible from the front.
Backflow prevention device inside the housing.
Secure system flush without sensitive elements.
Outlet connection for PVC tube Ø26/32mm.
10-year warranty.

Order with control-plate with references 464000 or 465000.

ADVANTAGES

Maintenance aisée - Installation aisée

Recessed installation is easy

Economie d'eau

100% waterproof housing

Faible espacement au mur - Encombrement limité

Adapt to wall thickness

Secteur

Compatible with mains supply

Characteristics

TECHNICAL CHARACTERISTICS

Recessed waterproof housing for TEMPOMATIC dual control WC

Ref. 464SBOX
Connector F¾"
Height 150mm
Depth 93 to 190mm
Width 225mm
Certificates Logo WRAS
Warranty Garantie 10 ans

Downloads

DOWNLOADS

Recessed waterproof housing for TEMPOMATIC dual control WC

Ref. 464SBOX

To download one or several documents linked to this product, please select the type of file you require :

This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video
