Cistern-less direct flush for WCs

TEMPOFLUX 2 control plate for WCs

Ref. 578212

Soft-touch operation time flow valve

2 variants

578222 - Adjustable dual flush - for walls 10 - 35 and 30 - 60mm, inline inlet M3/4"
578230 - Adjustable. dual flush - for walls 70 - 130mm, inline inlet M3/4"

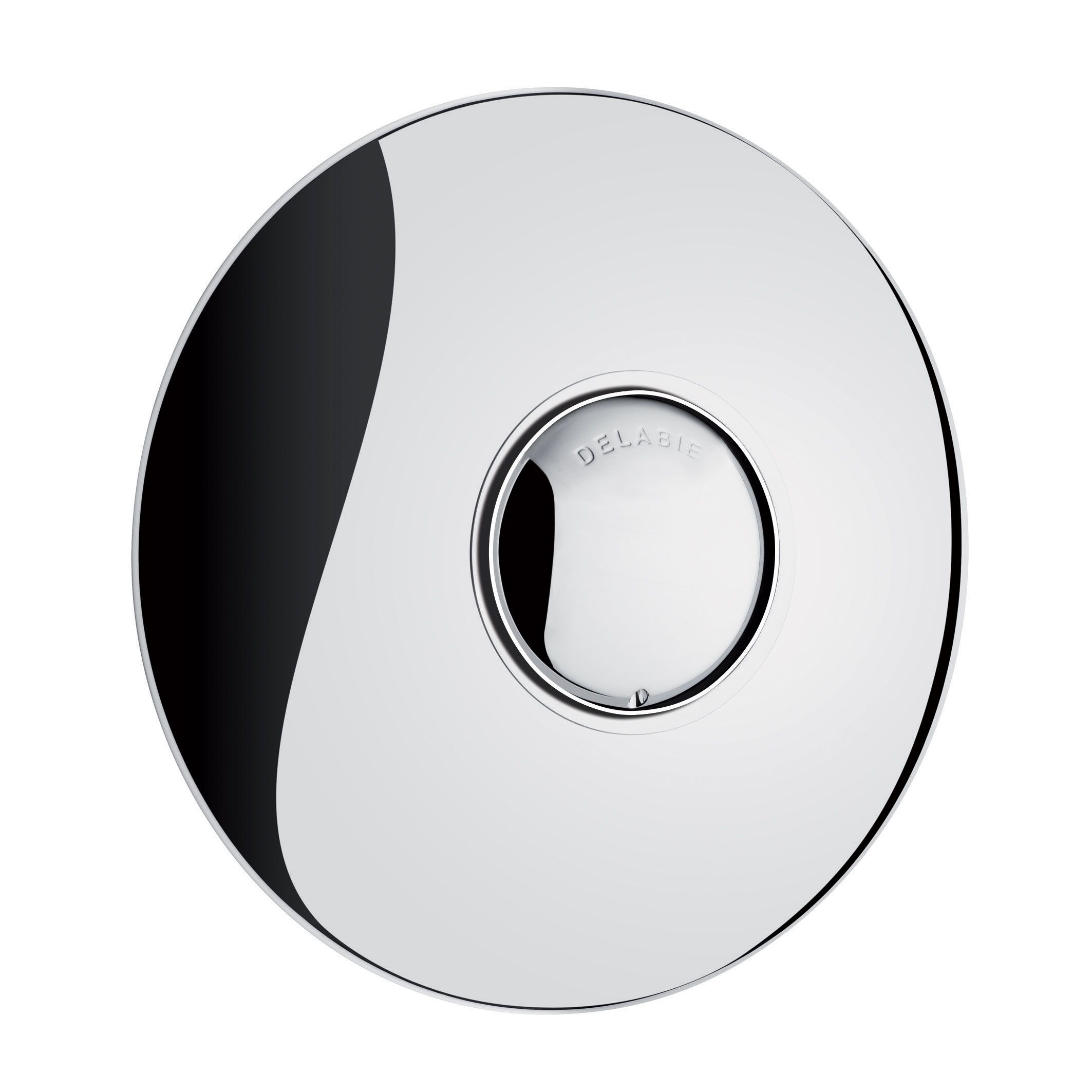

TEMPOFLUX 2 control plate for WCs

Ref. 578212

Control plate for TEMPOFLUX 2 time flow direct flush, kit 2/2:
Flush system without cistern, directly connected to pipework.
Ø 195mm chrome-plated metal wall plate.
Concealed mechanical fixing of the wall-plate.
6L single flush.
Soft-touch operation.
For walls 10 to 35mm or 30 to 60mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Complies with European standard EN 12541 class II.
30-year warranty.

Order with frame system references 578305DE or 578405DE.

Advantages

Confort - Ergonomie - Déclenchement souple
Soft-touch operation
Hygiène - Anti-bactérien - BIOSAFE
Direct flush: no water stagnation
Endurance - Fiabilité
Flush is instantly available
Discover the advantages of direct flush WC
Discover the advantages of direct flush WC
WC direct flush system, a public revolution
WC direct flush system, a public revolution

Associated products

Self-supporting TEMPOFIX 3 frame system for WCs

For TEMPOFLUX 2 time flow valve - Outlet Ø 110mm

Ref. 578305DE

Self-supporting TEMPOFIX 3 frame system for WCs

For TEMPOFLUX 2 time flow valve - Outlet Ø 110mm

Ref. 578405DE
