Cistern-less direct flush for WCs

TEMPOFLUX 1 direct flush kit

Ref. 761003

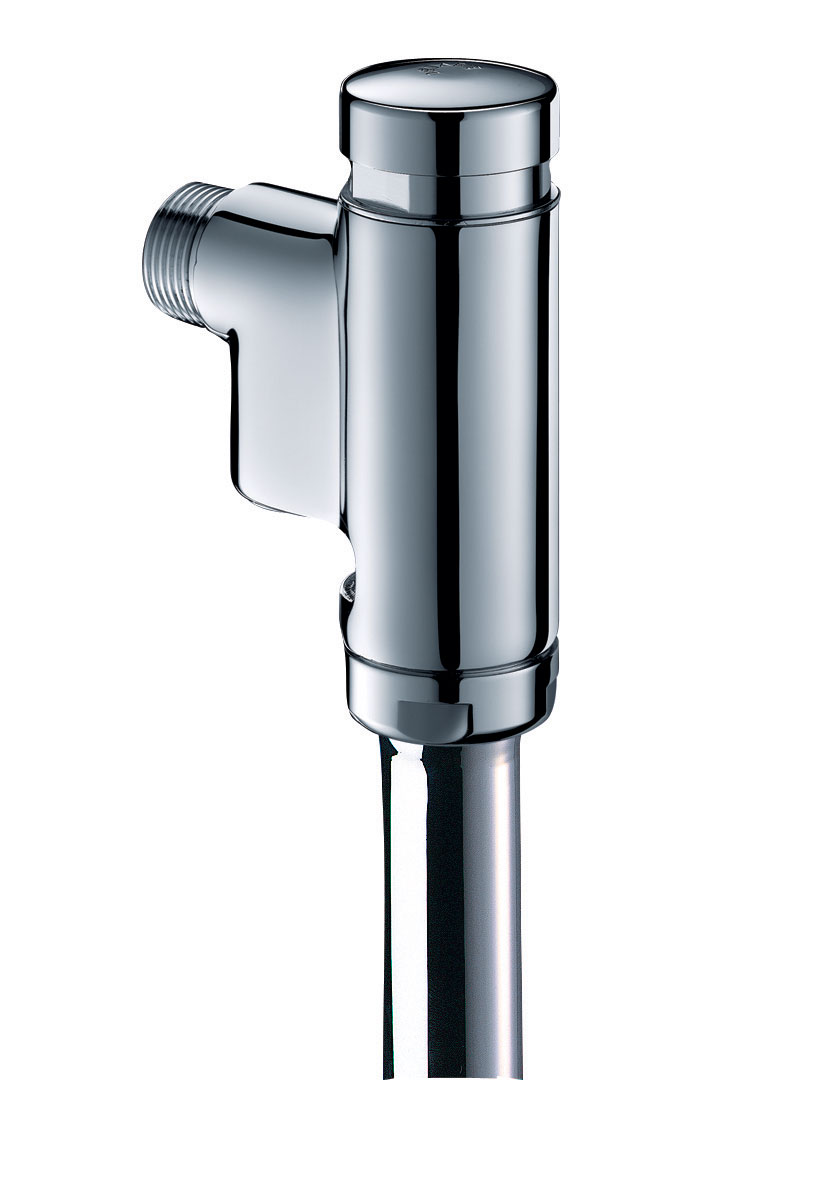

Time flow direct flush WC valve

1 variant

761001 - Exposed valve only, stopcock adjustable flow/vol, elbow inlet M3/4"

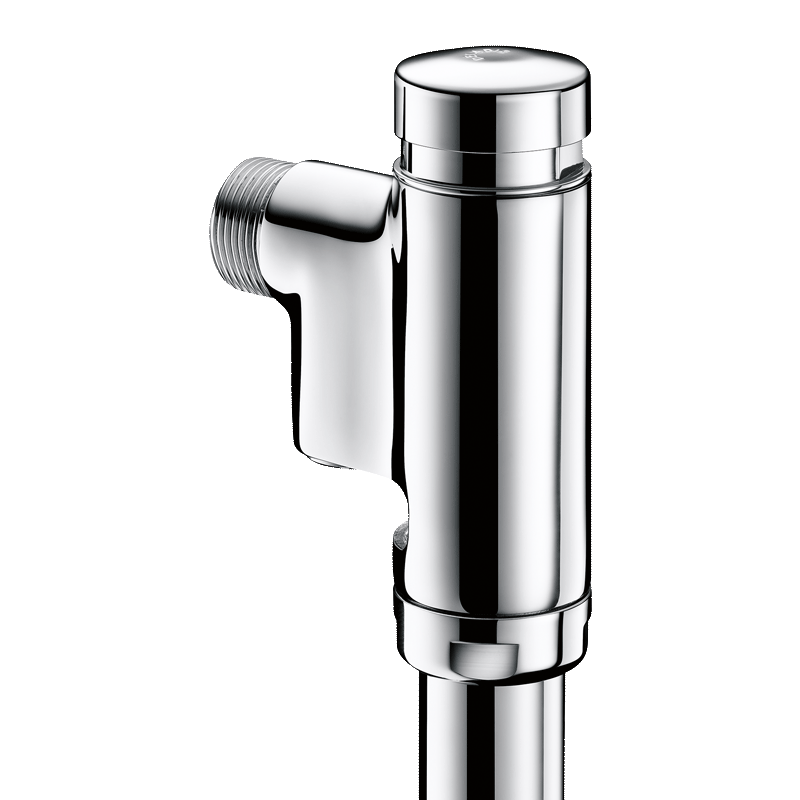

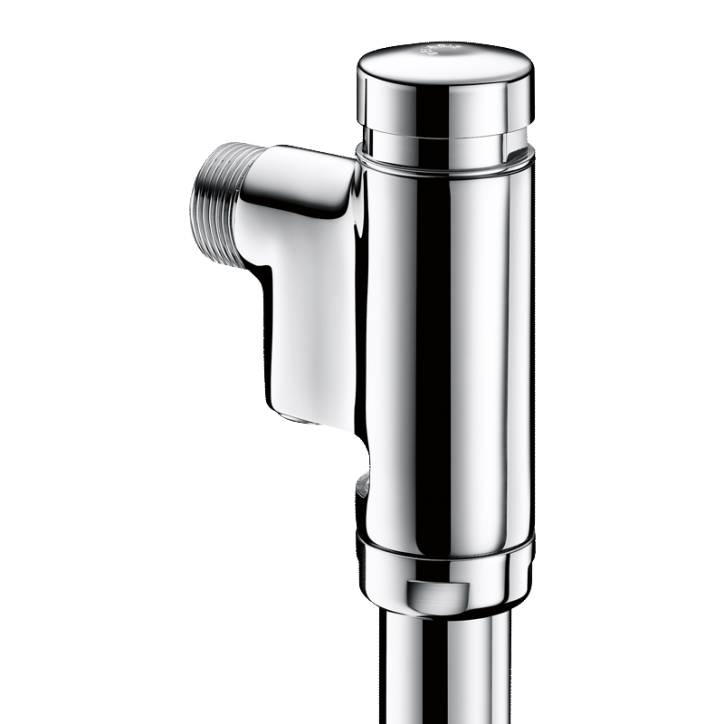

TEMPOFLUX 1 direct flush kit

Ref. 761003

Flush system without cistern: directly connected to pipework.
For wall-mounted exposed installation.
Soft-touch operation.
Time flow ~7 seconds.
Vacuum breaker.
Integrated stopcock and flow rate / flush volume rate adjuster.
Chrome-plated solid brass body and push-button.
Angled inlet M¾".
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
With stainless steel flush tube, collar and connection washer.
Compatible with rain water.
Suitable for people with reduced mobility.
30-year warranty.

Advantages

Hygiène - Anti-bactérien - BIOSAFE
No cistern: no stagnant water
Anti-vandalisme
Chrome-plated solid brass
Endurance - Fiabilité
Powerful flush and immediately available
Economie d'eau
Direct flush reduces the risk of leaks
Discover the advantages of direct flush WC
Discover the advantages of direct flush WC

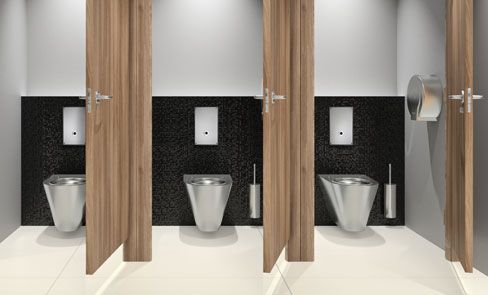

WC direct flush system, a public revolution
WC direct flush system, a public revolution
