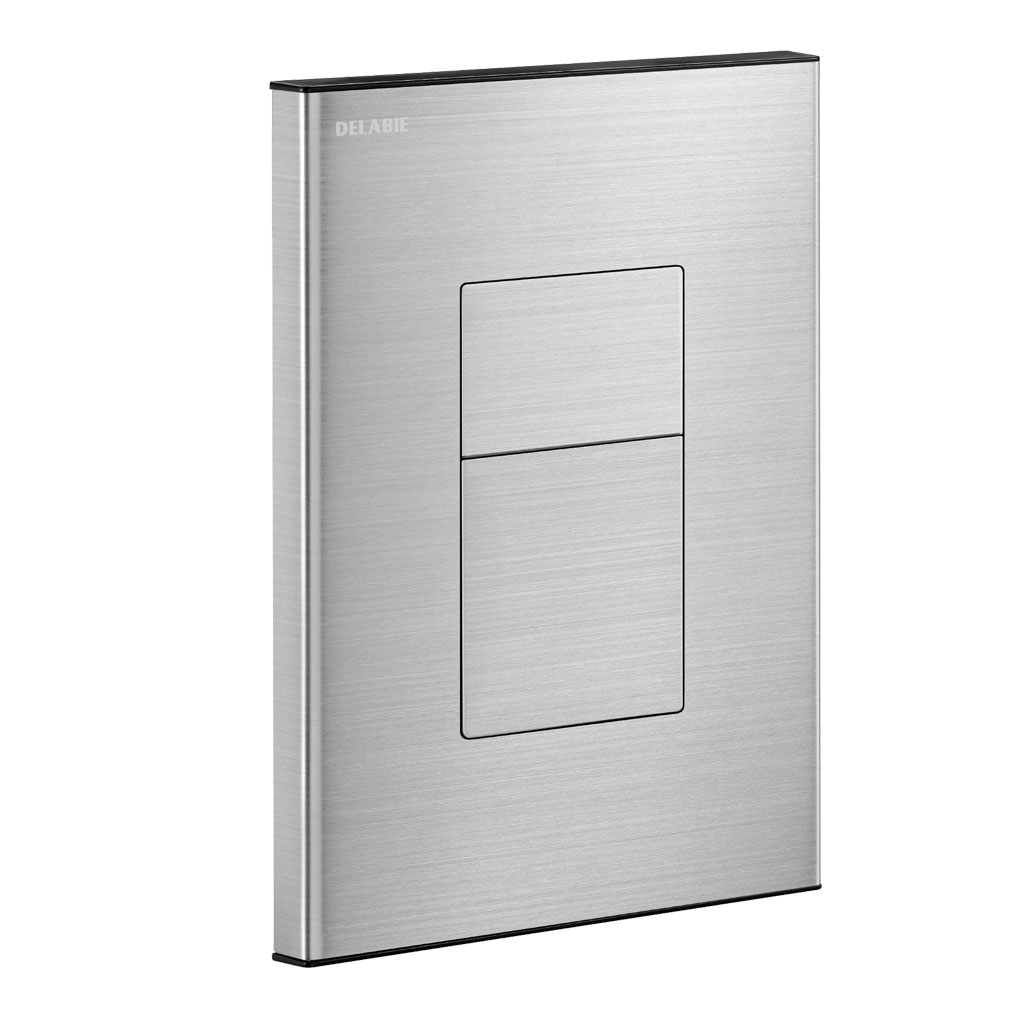

TEMPOFLUX 3 control plate for WCs

Ref. 763000

Soft-touch operation time flow control, AB, recessed

Ref. 763000

Control plate and recessed time flow direct flush valve TEMPOFLUX 3, kit 2/2:
Flush system without cistern: directly connected to pipework.
Satin stainless steel plate 210 x 162mm.
Control plate is installed manually via hidden fixings.
TEMPOFLUX 3 F¾" valve compatible with rain water.
Soft-touch operation.
AB anti-blocking system: flush only takes place once the push-button is released.
3L/6L dual flush can be adjusted to 2L/4L. Rectangular design.
Complies with European standard EN 12541 (class II acoustic level).
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans and suitable for people with reduced mobility.
30-year warranty.

Order with frame system reference 564060DE, 564065DE or 5645065, or with 763BOX recessed housing.

Advantages

Soft-touch operation

Direct flush: no water stagnation

3L/6L dual flush

Maintenance made easy with front access

TEMPOFLUX 3 control plate for WCs

Ref. 763000

Connector F¾"

Technology Time flow

Height 210mm

Width 162mm

Finish Satin stainless steel

Certificates

Warranty

This direct flush WC valve without a cistern is ideal for public buildings: discover its advantages in this video

WC direct flush system, a public revolution

Associated products

TEMPOFIX 3 self-supporting frame system for WCs

For battery-operated electronic or time flow valves- Ø 110mm

Ref. 564065DE

TEMPOFIX 3 wall-mounted frame system for WCs

For time flow or battery-operated electronic valve - Ø 110mm outlet

Ref. 564060DE

Recessed waterproof housing for TEMPOFLUX 3 WC

For WC time flow valve - Kit 1/2

Ref. 763BOX
