TEMPOSTOP time flow urinal valve - lead-free version

Ref. 779128LF
3 second time flow, lead-free version
See variants See variants
TEMPOSTOP time flow urinal valve - lead-free version

Presentation

DESCRIPTION

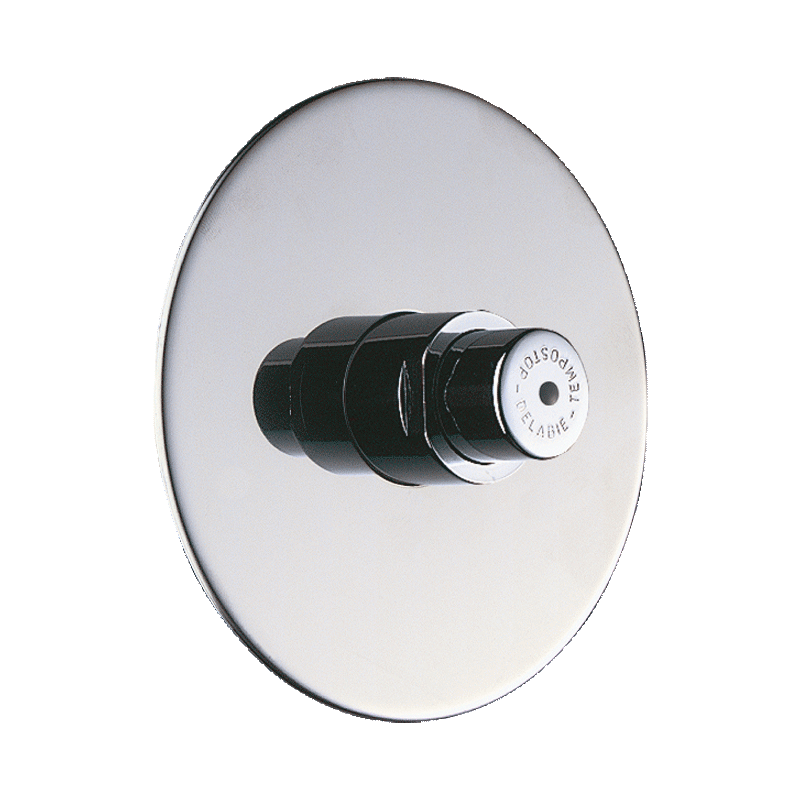

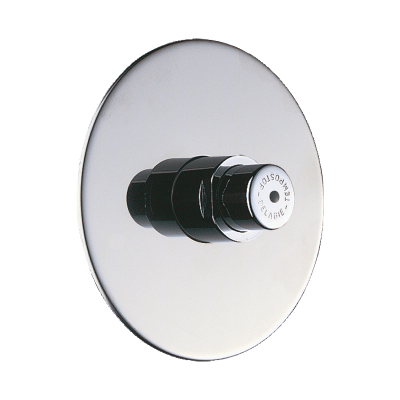

TEMPOSTOP time flow urinal valve - lead-free version

Ref. 779128LF
Recessed time flow urinal valve:
For standard or siphon action urinals.
Cross-wall installation.

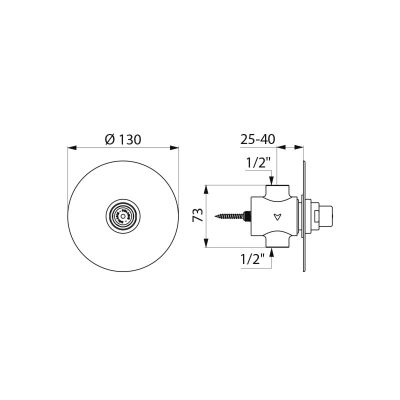

Recess depth adjustable from 25 to 40 mm.
Ø 130mm stainless-steel fixing plate.
Compatible with rain water.
Time flow ~7 seconds.
Flow rate pre-set at 0,25 l/sec at 3 bar, can be adjusted.
Lead-free brass body F1/2".
30-year warranty.

This sanitary ware model is not supplied with recessed waterproof housing, the installer must ensure the impermeability of recessed housing as well as draining any potential leaks and condensation (see installation guide).

ADVANTAGES

Sans plomb

Lead-free brass

Economie d'eau

7-second time flow

Anti-vandalisme

Cross-wall

Endurance - Fiabilité

Withstands over 500,000 operations

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOSTOP time flow urinal valve - lead-free version

Ref. 779128LF
Connector 1/2"
Technology Time-flow
Flow rate 0,25 l/sec
Warranty 30-Year
TEMPOSTOP time flow urinal valve - lead-free version
Ref. 779128LF

Downloads

DOWNLOADS

TEMPOSTOP time flow urinal valve - lead-free version

Ref. 779128LF

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

777930 Time flow 7s, recessing depth 20 to 35mm, brass connector F½"
779128 Time flow 7s, recessing depth 20 to 35mm, brass connector F½"

Associated products

VARIANTS

777930 Time flow 7s, recessing depth 20 to 35mm, brass connector F½"
779128 Time flow 7s, recessing depth 20 to 35mm, brass connector F½"
