TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564060DE
For time flow or battery-operated electronic valve - Ø 110mm outlet
TEMPOFIX 3 wall-mounted frame system for WCs

Presentation

DESCRIPTION

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564060DE

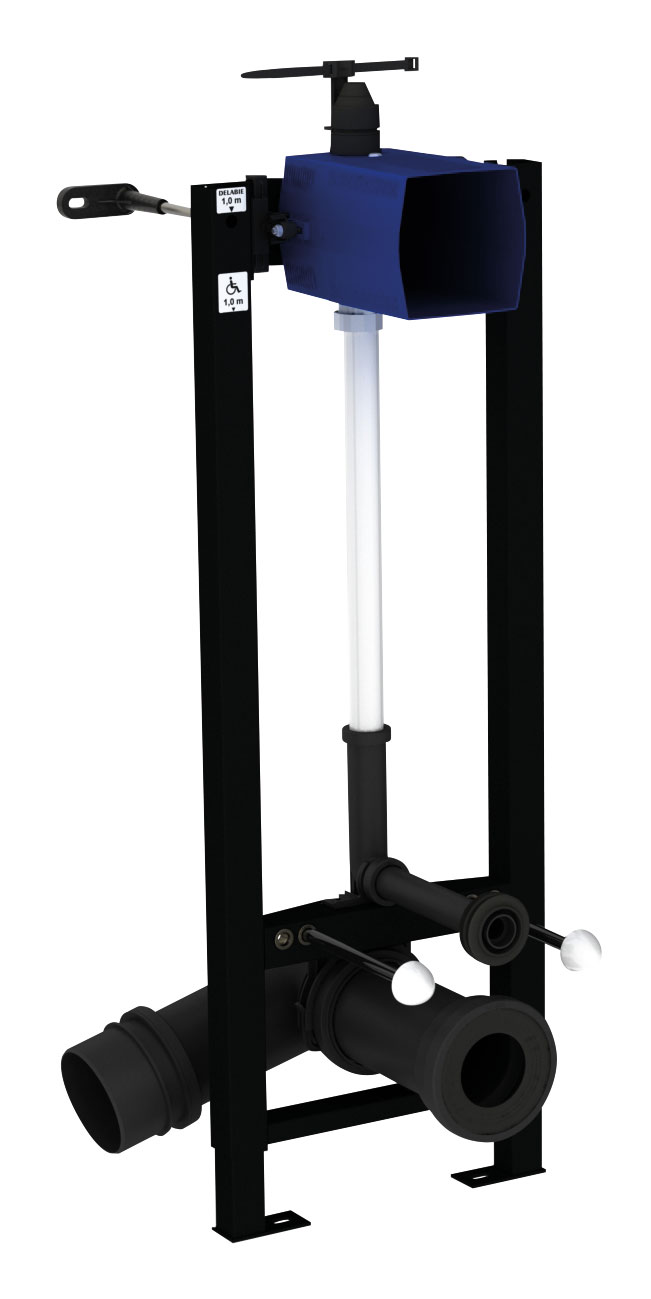

Wall-mounted frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- For fixing to load-bearing walls.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with electronic or time flow valves for WCs.
- Compatible with CR123 Lithium 6V battery.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.

Order with control plate references 464006, 465006, 763000, 763030, 763040 or 763041.

ADVANTAGES

Maintenance aisée - Installation aisée

Quick and easy to install: delivered pre-mounted

Faible espacement au mur - Encombrement limité

Space-saving

Universel

Adapt to wall thickness

Piles

Compatible with 6V Lithium batteries

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564060DE
Connector ¾"
Technology Electronic and time flow
Height 1000 to 1320mm
Depth 157 - 177mm
Width 350mm
Diameter Ø 110mm outlet
Finish Black powder-coated steel
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564060DE

To download one or several documents linked to this product, please select the type of file you require :

This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video
This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video
WC direct flush system, a public revolution
WC direct flush system, a public revolution
