PREMIX COMFORT Group thermostatic mixing valve

Ref. 731300
For mixed water 32°-42°C
PREMIX COMFORT Group thermostatic mixing valve +

Presentation

DESCRIPTION

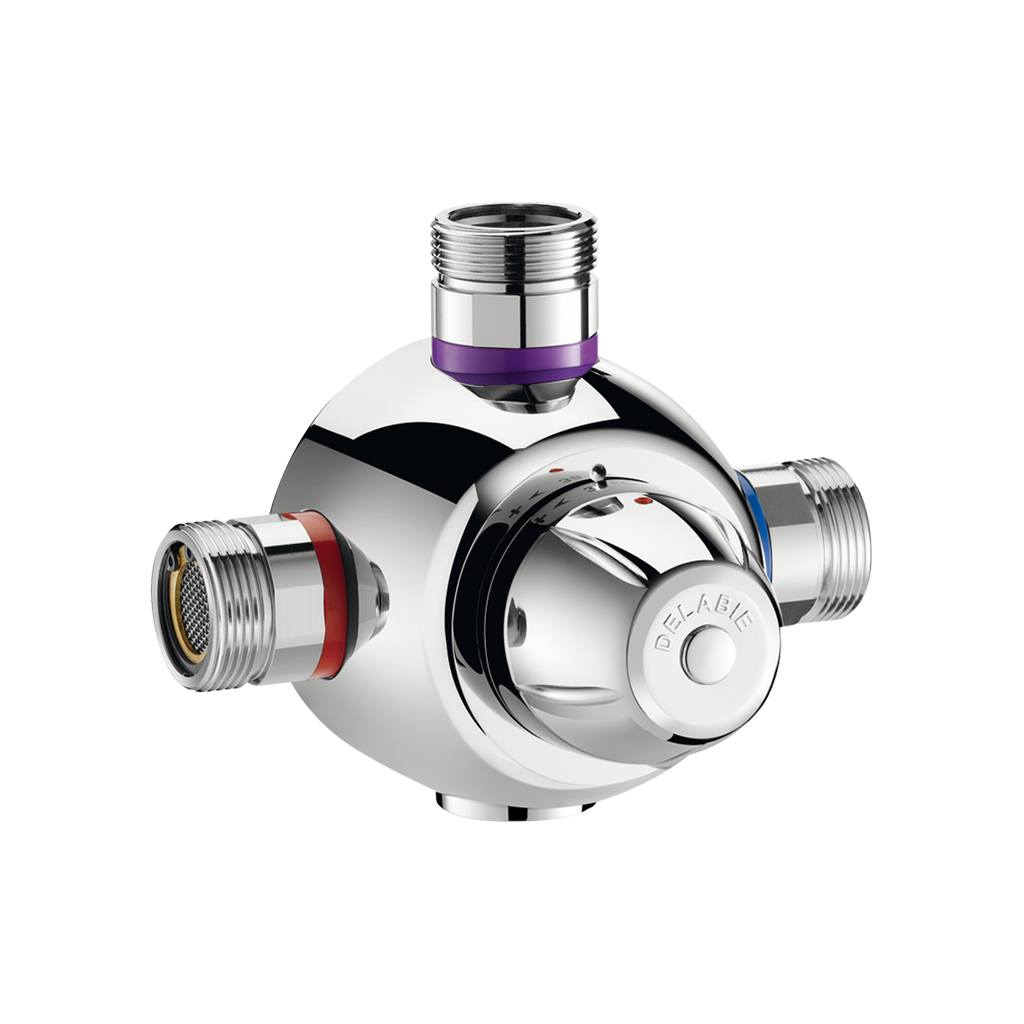

PREMIX COMFORT Group thermostatic mixing valve

Ref. 731300
Group thermostatic mixing valve for mixed water from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

Automatic shut-off if cold water supply fails

Confort - Ergonomie - Déclenchement souple

Temperature stability

Maintenance aisée - Installation aisée

Accessible filters and non-return valves

Endurance - Fiabilité

Thermo-reactive cell

Characteristics

TECHNICAL CHARACTERISTICS

PREMIX COMFORT Group thermostatic mixing valve

Ref. 731300
Connector M1"
Technology Thermostatic
Height 95mm
Depth 23mm
Length 146mm
Flow rate 90 lpm
Certificates ACS Logo Belgaqua Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

PREMIX COMFORT Group thermostatic mixing valve

Ref. 731300

To download one or several documents linked to this product, please select the type of file you require :
