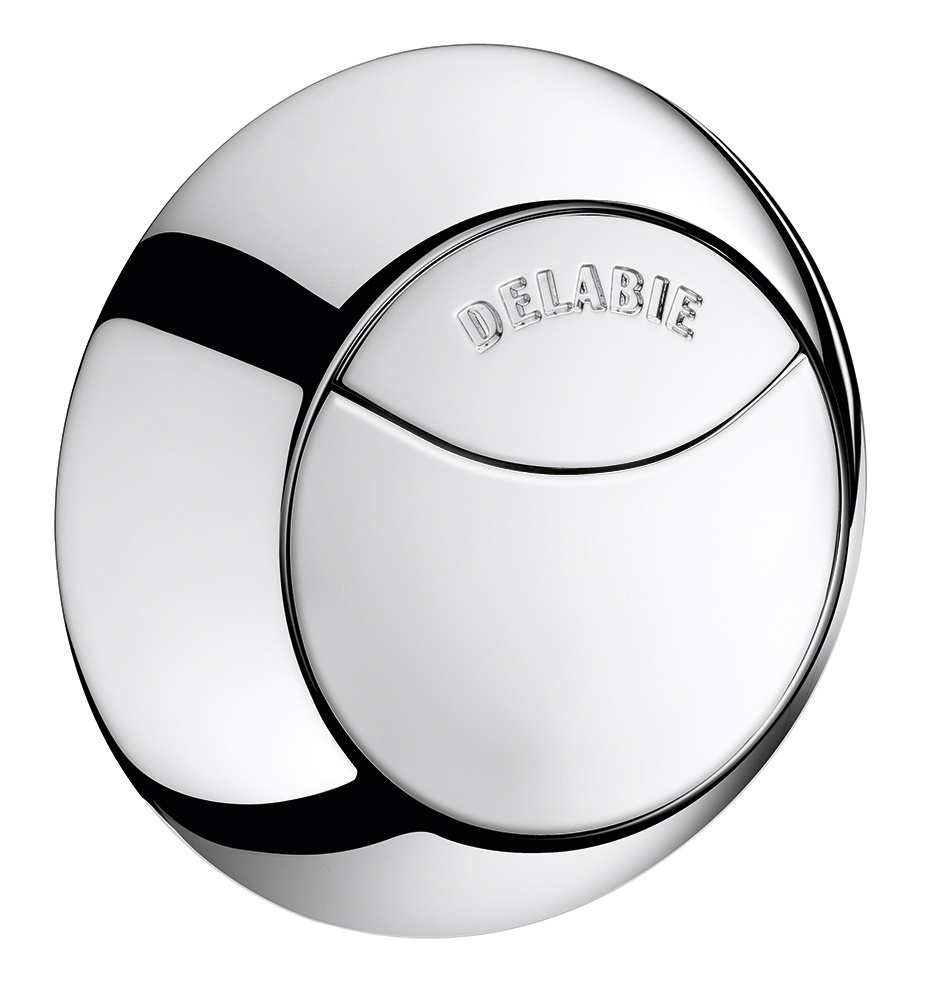

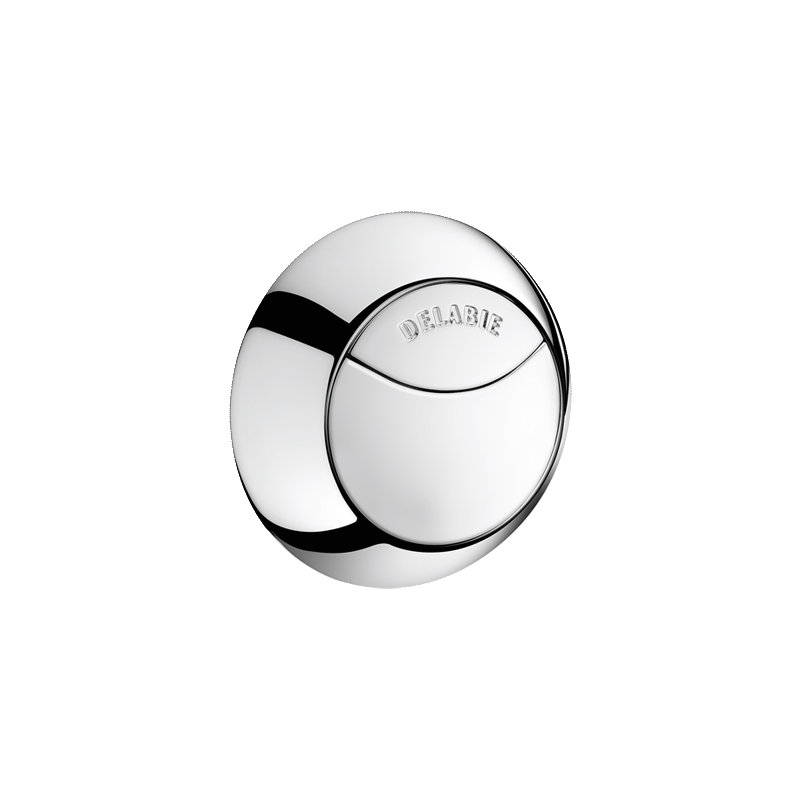

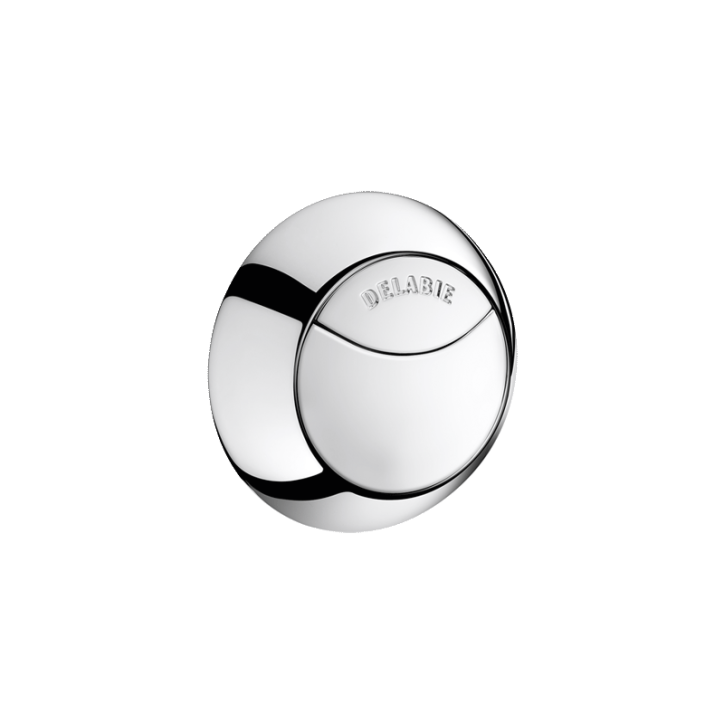

TEMPOFLUX 2 direct flush valve

Ref. 762150

Direct flush WC valve

Ref. 762150

Flush system without cistern: directly connected to pipework.
For walls ≤ 140mm.
3L/6L dual flush can be adjusted to 2L/4L.
Soft-touch operation.
Vacuum breaker.
Integrated stopcock and flow rate / flush volume adjuster.
Solid brass body.
Chrome-plated metal push-button.
In-line inlet M¾".
Outlet connection for PVC tube Ø 26/32mm.
Threaded rod can be cut to size.
Acoustic level complies with European standard EN 12541 class II.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Compatible with rain water.
Suitable for rimless WC pans without flow rate regulation.
Suitable for people with reduced mobility.
30-year warranty.

Advantages

Soft-touch operation

Dual flush 3L/6L

No cistern: no stagnant water

Cross wall installation

TEMPOFLUX 2 direct flush valve

Ref. 762150

Connector ¾"

Technology Time flow

Length 140mm

Flow rate 3L/6L

Certificates

Warranty

Discover the advantages of direct flush WC

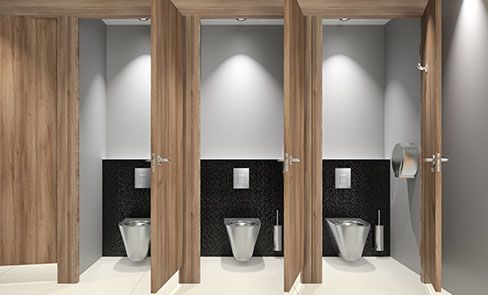

WC direct flush system, a public revolution

Associated products

New

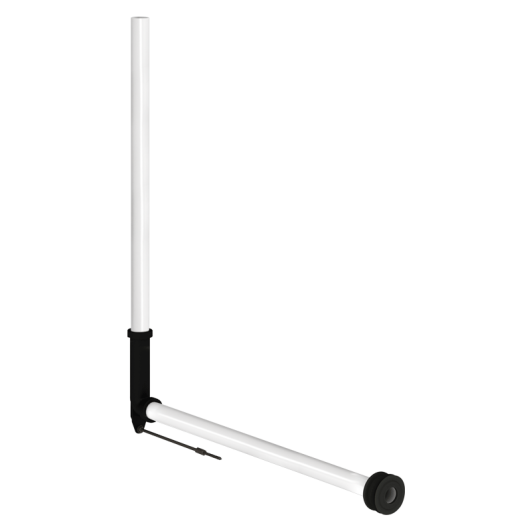

Flush tube
