Recessed waterproof housing for BINOPTIC

Ref. 370PBOX
Batteries, kit 1/2
Recessed waterproof housing for BINOPTIC

Presentation

DESCRIPTION

Recessed waterproof housing for BINOPTIC

Ref. 370PBOX
Provisional availability 2nd half
2024
.
Please contact the sales office to check availability.
Recessed waterproof housing for BINOPTIC 2, kit 1/2:
Battery-operated with CR123 Lithium 6V batteries.

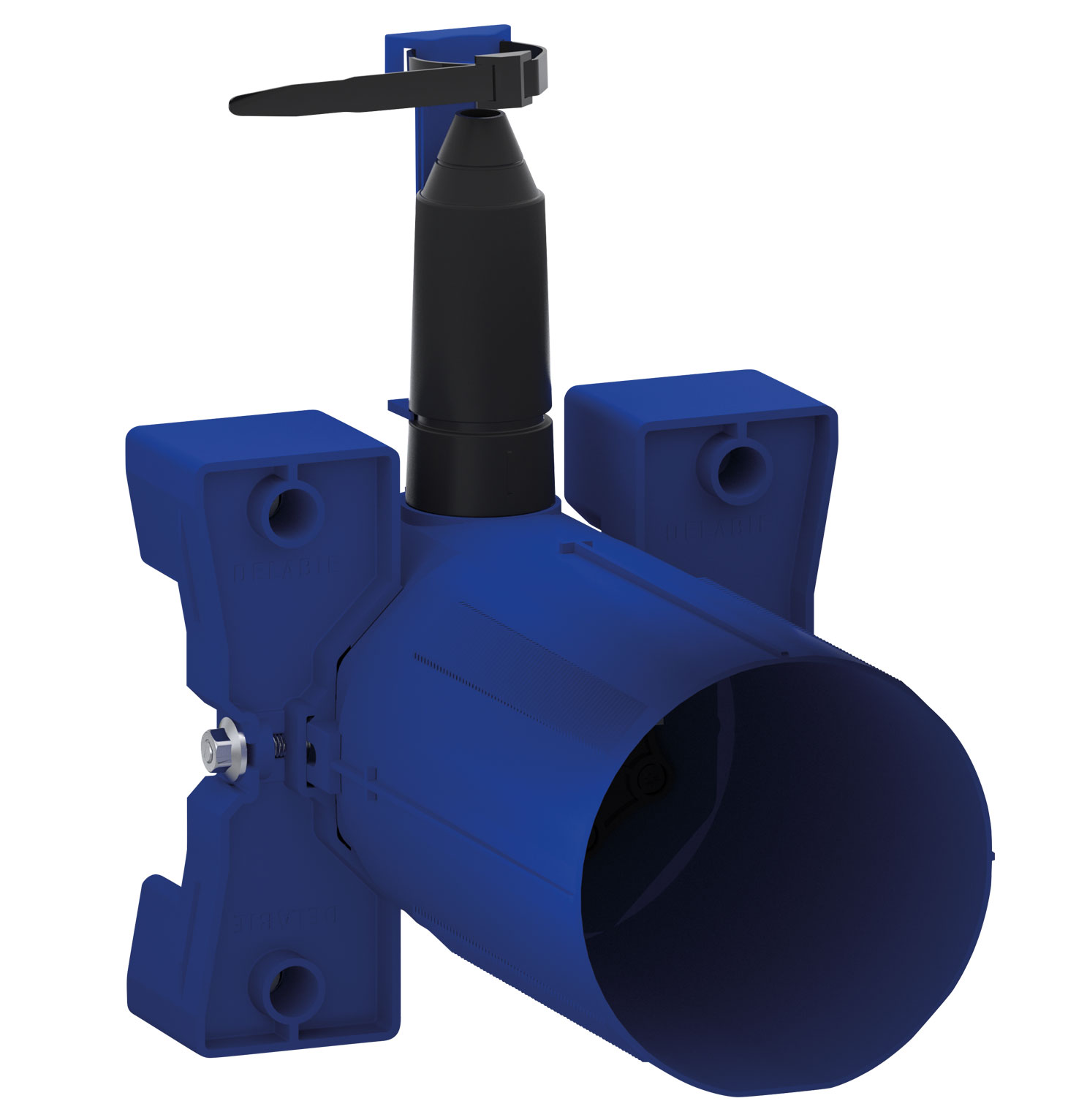

Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Modular installation (rails, solid walls, panels).
- Compatible with walls from 10 to 120mm (whilst maintaining the minimum recessing depth of 83mm).
- Adaptable standard pipework or "pipe in pipe".
- Integrated stopcock and flow rate adjuster, filter and solenoid valve are accessible from the front.
- BINOPTIC 2 tap F½".
- Supplied in 2 kits: secured system purge without sensitive elements.
30-year warranty.

Order with control plate references: 370106 or 370116.

ADVANTAGES

Maintenance aisée - Installation aisée

Installation recessed in wall

Piles

6V Lithium batteries

Economie d'eau

100% waterproof housing

Characteristics

TECHNICAL CHARACTERISTICS

Recessed waterproof housing for BINOPTIC

Ref. 370PBOX
Connector F½"
Height 150mm
Depth 83-190mm
Width 175mm
Certificates ACS
Warranty 30-Year
