TEMPOMATIC Connect control plate for WC

Ref. 465000
Recessed dual control electronic mains supply valve - For WCs

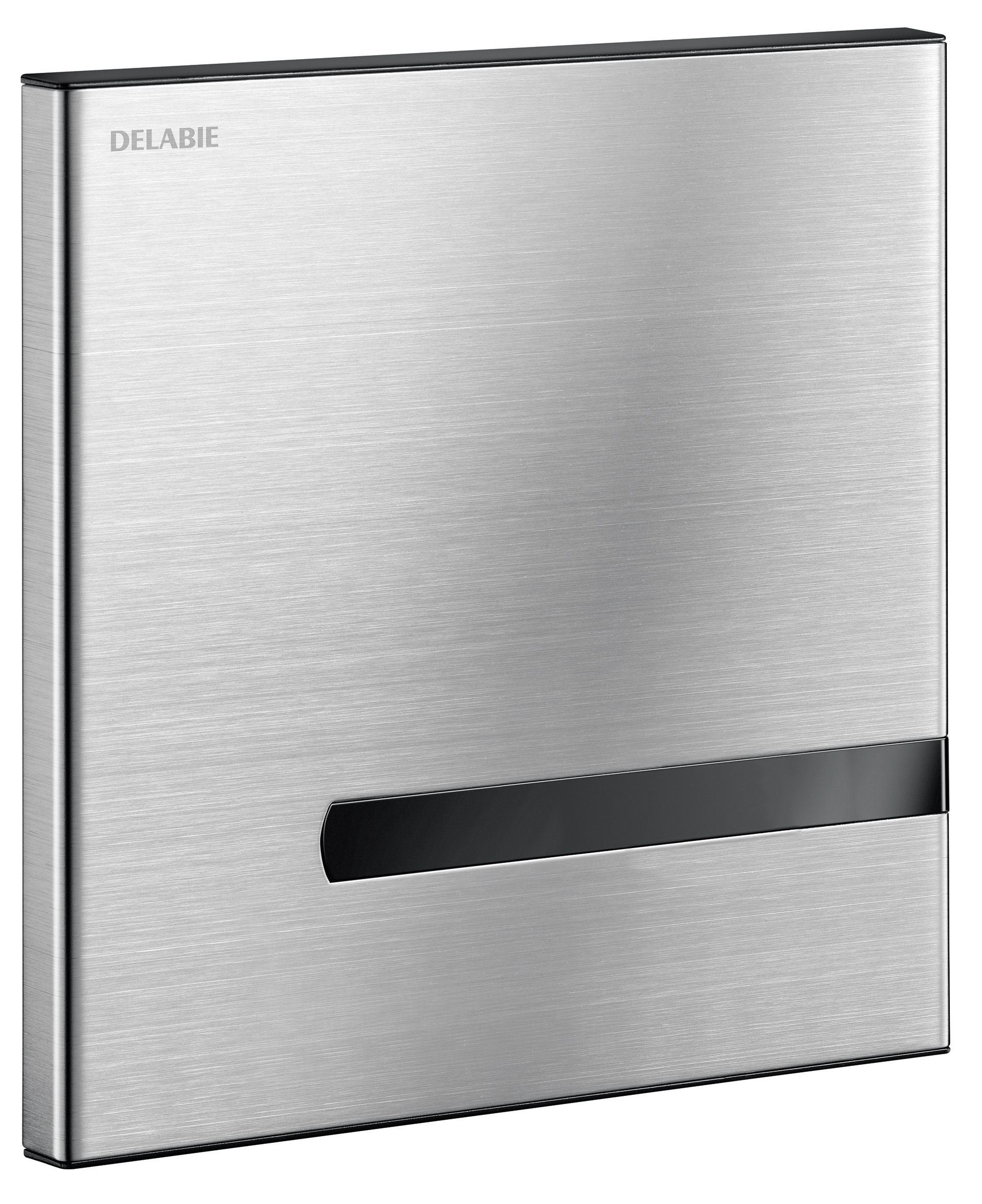

TEMPOMATIC Connect control plate for WC



TEMPOMATIC Connect control plate for WC

Ref. 465000
Provisional availability 1st half
Please contact the sales office to check availability.
TEMPOMATIC Connect recessed electronic valve for direct flush, kit 2/2:
Flush system without cistern: directly connected to pipework.
230/6V mains supply (cable and transformer supplied).
Satin finish stainless steel wall plate 186 x 186mm.
Mechanical fixing of the control plates.
TEMPOMATIC F¾" flush valve is compatible with sea water, rain water and grey water.
Telemetric presence detection range.
Detection delay is 10 seconds.
Contactless activation (by passing the hand in front of sensor at a distance of 4cm)
Flush after each user. If the user leaves the toilet without flushing, an automatic flush is activated to ensure optimum bathroom hygiene.
"Intelligent" automatic rinsing: flush volume adapts according to use - 3L "short" usage, 6L "long" usage - (can be adjusted).
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after the last use.
Bluetooth® technology connects to the DELABIE Connect app or presence detection distance can be automatically adjusted via a concealed button.
Supply diameter: minimum Ø 20mm interior at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans and suitable for people with reduced mobility.
10-year warranty.

Order with frame system references 564000 or 564005, or with recessed housing 464SBOX.


Sans contact manuel

Total hygiene: no manual contact

Hygiène - Anti-bactérien - BIOSAFE

Direct flush: no water stagnation

Confort - Ergonomie - Déclenchement souple

Voluntary or automatic activation


Easy to configure & monitor operation



TEMPOMATIC Connect control plate for WC

Ref. 465000
Supply 230/6V Mains supply
Connector F3/4"
Technology Automatic
Length 186mm
Width 186mm
Finish Satin stainless steel
Warranty Garantie 10 ans



TEMPOMATIC Connect control plate for WC

Ref. 465000
