TEMPOFLUX 2 direct flush valve

Ref. 762150
Time flow dual flush 3L/6L
TEMPOFLUX 2 direct flush valve

Presentation

DESCRIPTION

TEMPOFLUX 2 direct flush valve

Ref. 762150
Cross wall time flow valve for direct flush:
For walls ≤ 140mm.
3L/6L dual flush can be adjusted to 2L/4L.
Soft-touch operation.
Vacuum breaker.
Integrated stopcock and flow rate / flush volume adjuster.
Solid brass body.

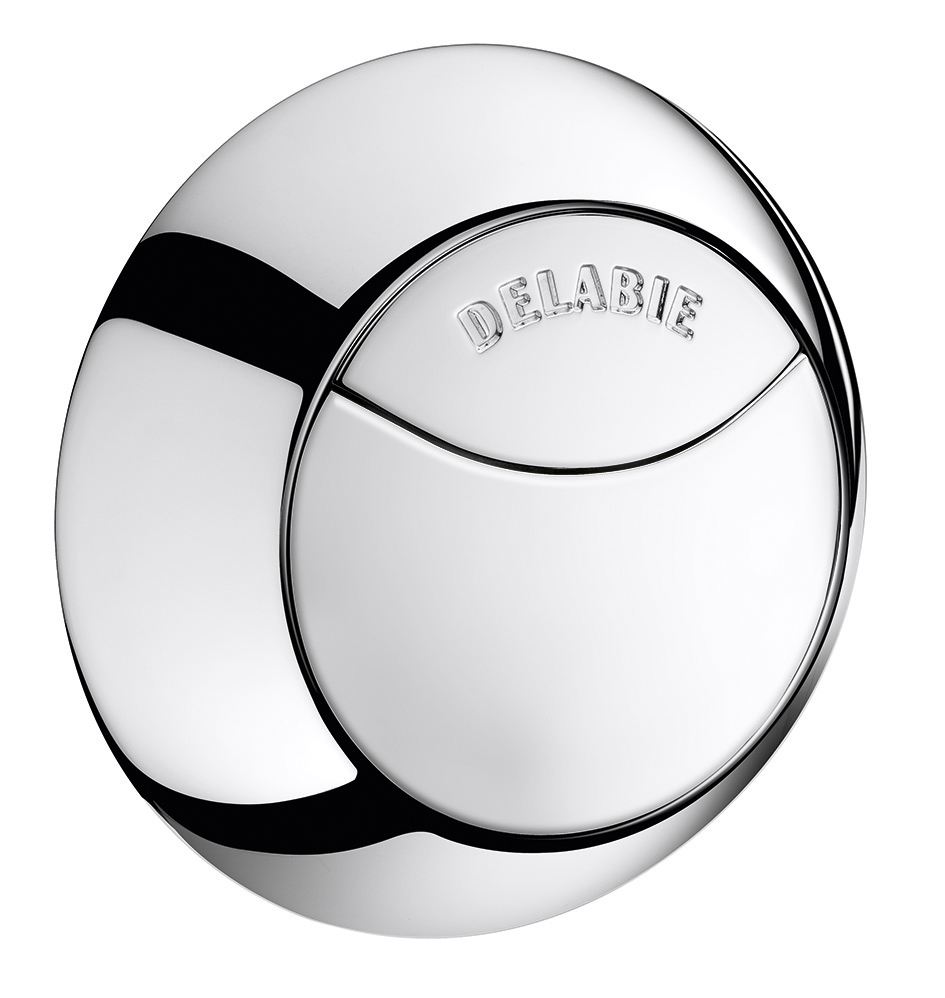

Chrome-plated metal push-button.
In-line inlet M3/4".
Outlet connection for PVC tube Ø 26/32mm.
Threaded rod can be cut to size.
Acoustic level complies with European standard EN 12541 class II.
Base flow rate: 1 L/sec.
Suitable for rimless WC pans without flow rate regulation and suitable for people with reduced mobility.
10-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Economie d'eau

Dual flush 3L/6L

Hygiène - Anti-bactérien - BIOSAFE

Direct flush: no water stagnation

Anti-vandalisme

Cross wall installation

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFLUX 2 direct flush valve

Ref. 762150
Connector 3/4"
Technology Time flow
Length 140mm
Flow rate 3L/6L
Certificates Logo Belgaqua Logo DoP
Warranty Garantie 10 ans

Downloads

DOWNLOADS

TEMPOFLUX 2 direct flush valve

Ref. 762150

To download one or several documents linked to this product, please select the type of file you require :
