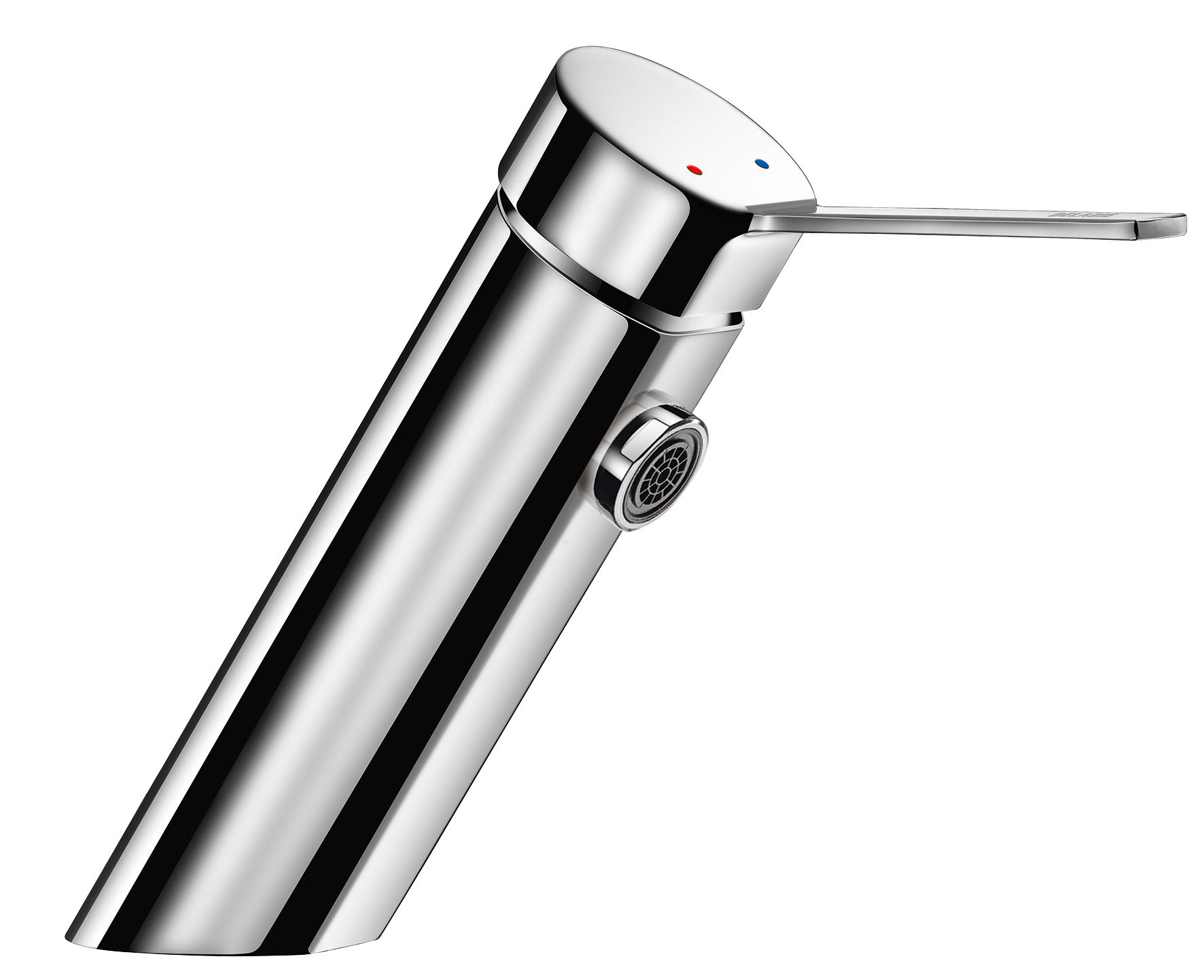

SECURITHERM EP BIOSAFE pressure balancing basin mixer

Ref. 2621EP
Single hole mechanical mixer with no spout, H. 95mm L. 110mm
SECURITHERM EP BIOSAFE pressure balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP BIOSAFE pressure balancing basin mixer

Ref. 2621EP
Deck-mounted mechanical basin mixer with pressure-balancing.
Single hole mechanical mixer H. 95mm L. 110mm.
No spout: BIOSAFE hygienic outlet integrated into the body.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Securitouch thermal insulation prevents burns.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Mixer body with smooth interior and very low water volume (reduces bacterial development).
Flow rate limited to 4 lpm at 3 bar.
Solid control lever.
With no pop-up waste.
PEX flexibles F3/8" with rotating unions, filters and non-return valves.
Fixing reinforced by two stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 10-year warranty.
Also available with copper tails.

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW fails

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: mixer with no spout

Sécurité anti-brûlure

Thermal shocks are possible without removing lever

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: body with very low water volume

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP BIOSAFE pressure balancing basin mixer

Ref. 2621EP
Connector F3/8"
Technology SECURITHERM EP BIOSAFE mechanical mixer
Height 180mm
Length 220mm
Drop height 95mm
Spout length 110mm
Flow rate 4 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated stainless steel
Certificates ACS Logo Belgaqua Logo WRAS Logo DoP Logo Ü accoustic Logo PZH Logo DIN-DVGW SINTEF
Warranty Garantie 10 ans

Downloads

DOWNLOADS

SECURITHERM EP BIOSAFE pressure balancing basin mixer

Ref. 2621EP

To download one or several documents linked to this product, please select the type of file you require :

Watch the 2621EP video: a hygiene and safety revolution
Watch the 2621EP video: a hygiene and safety revolution

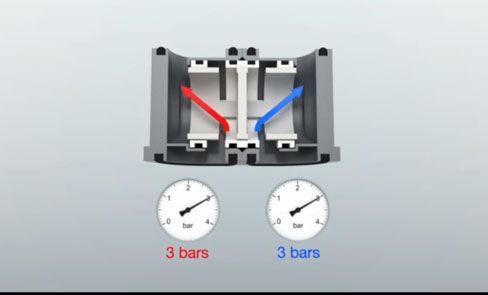

Pressure-balancing: anti-scalding safety and stable temperature
Pressure-balancing: anti-scalding safety and stable temperature
