TEMPOFLUX 1 direct flush kit

Ref. 761003
Time flow direct flush WC valve
TEMPOFLUX 1 direct flush kit

Presentation

DESCRIPTION

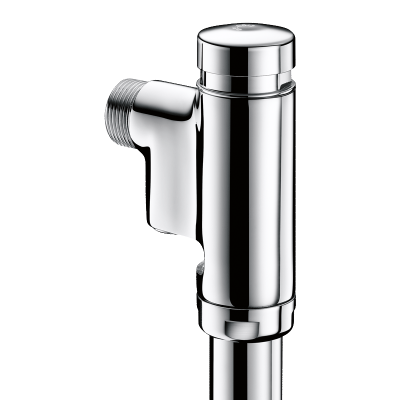

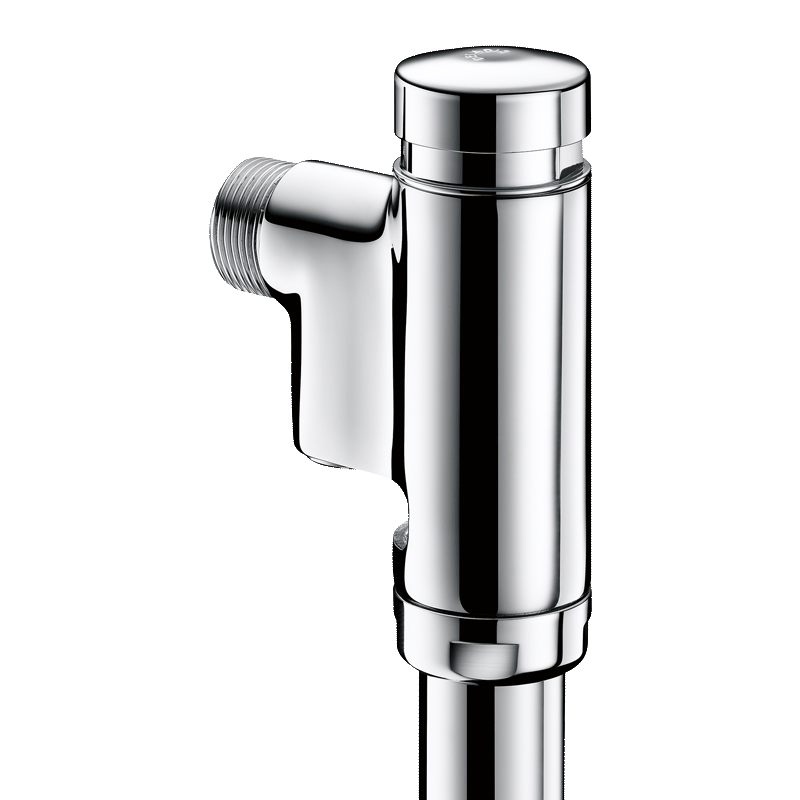

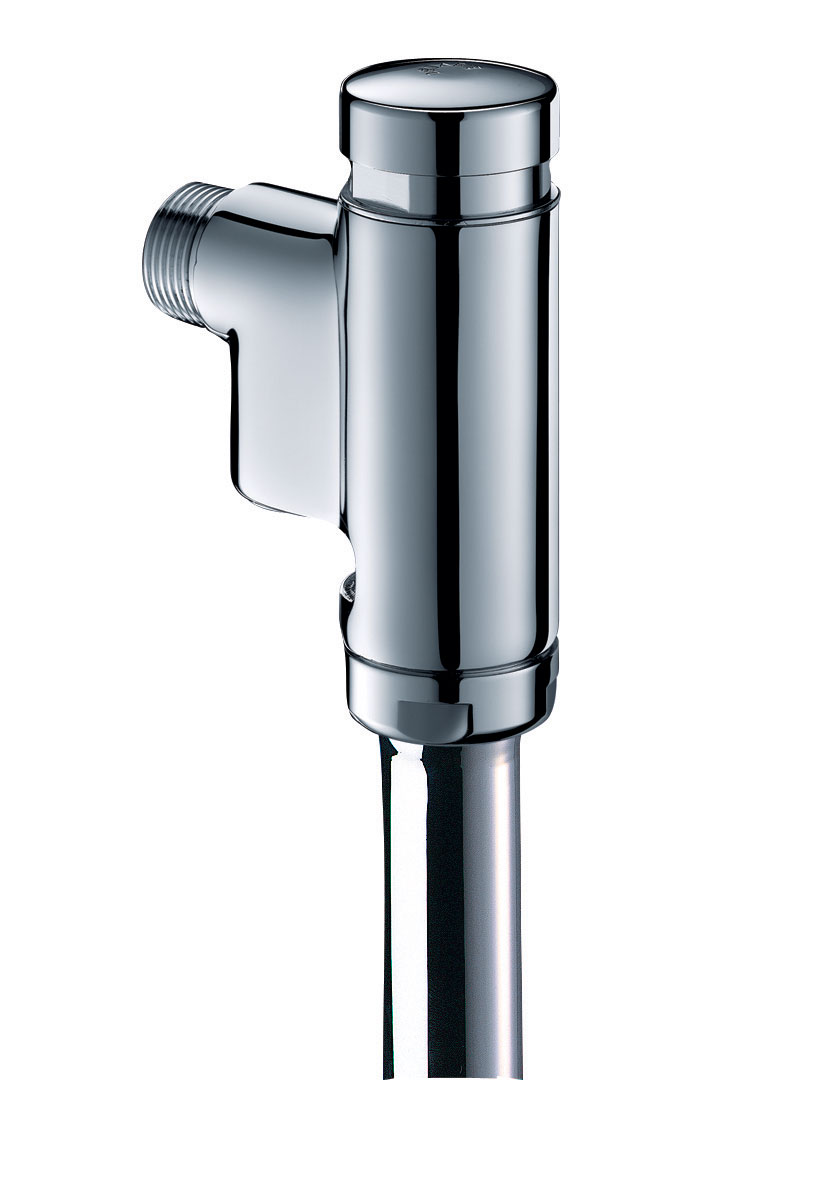

TEMPOFLUX 1 direct flush kit

Ref. 761003
Flush system without cistern: directly connected to pipework.
For wall-mounted exposed installation.
Soft-touch operation.
Time flow ~7 seconds.
Vacuum breaker.
Integrated stopcock and flow rate / flush volume rate adjuster.
Chrome-plated solid brass body and push-button.
Angled inlet M¾".
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
With stainless steel flush tube, collar and connection washer.
Compatible with rain water.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

No cistern: no stagnant water

Anti-vandalisme

Chrome-plated solid brass

Endurance - Fiabilité

Powerful flush and immediately available

Economie d'eau

Direct flush reduces the risk of leaks

Characteristics

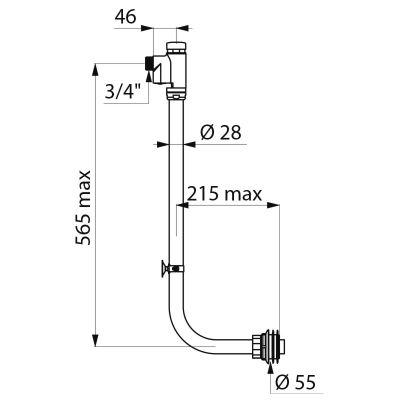

TECHNICAL CHARACTERISTICS

TEMPOFLUX 1 direct flush kit

Ref. 761003
Connector ¾"
Height 565mm
Length 215mm
Certificates Logo DoP Logo Belgaqua
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOFLUX 1 direct flush kit

Ref. 761003

To download one or several documents linked to this product, please select the type of file you require :

Discover the advantages of direct flush WC
Discover the advantages of direct flush WC

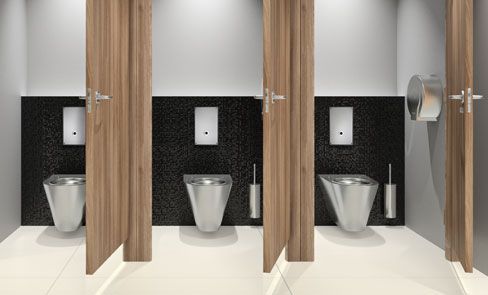

WC direct flush system, a public revolution
