Ref. 682001
For tiled or concrete floors
8 variants
683002DE -
Ø 50mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm
682001DE -
Ø 50mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
682001UK -
Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
683001 -
Ø 40mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683001UK -
Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683002 -
Ø 40mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm
683002UK -
Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm
684000 -
Ø 40mm outlet- tiled or concrete floors- 140 x 140mm

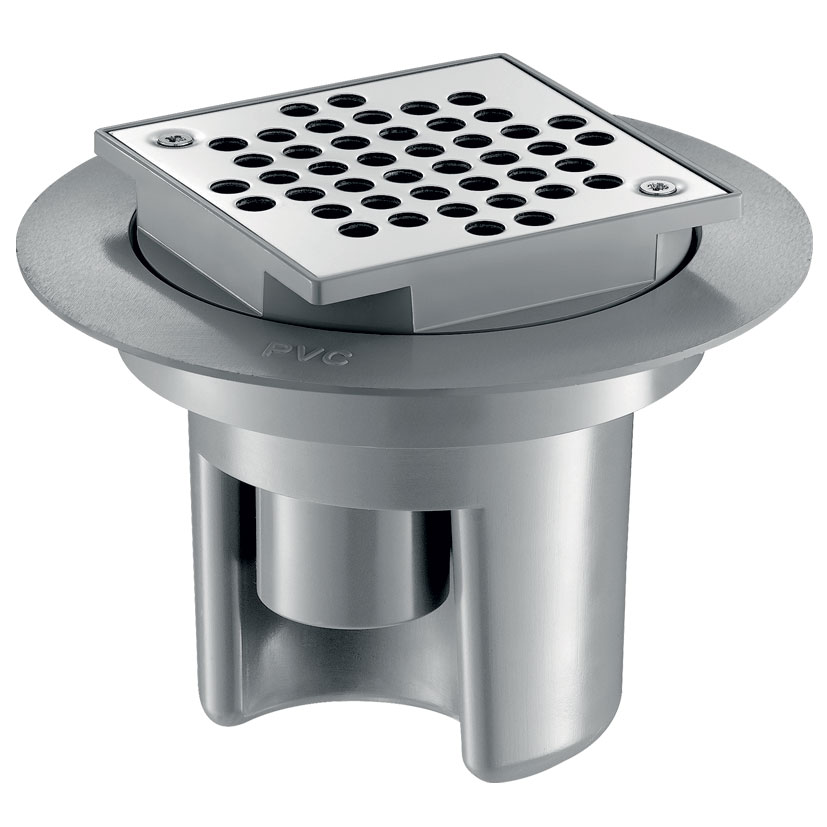

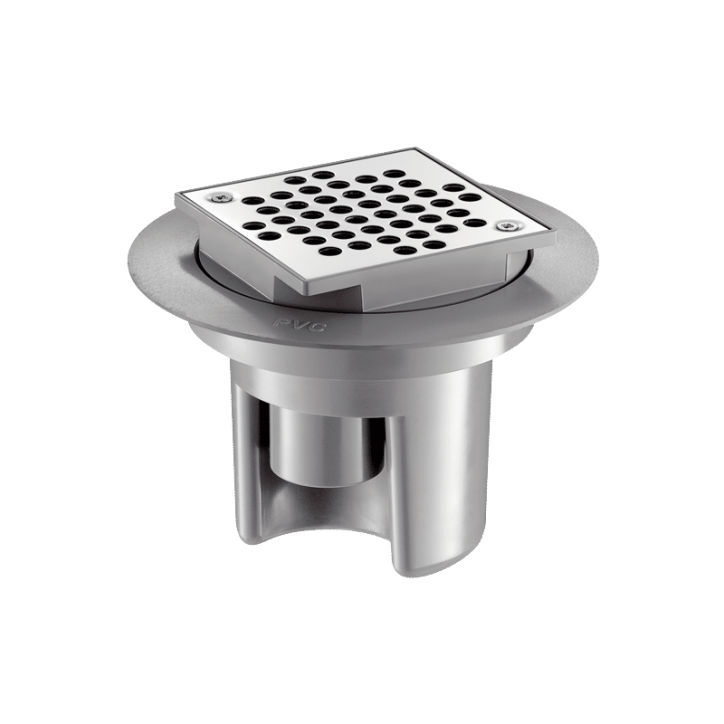

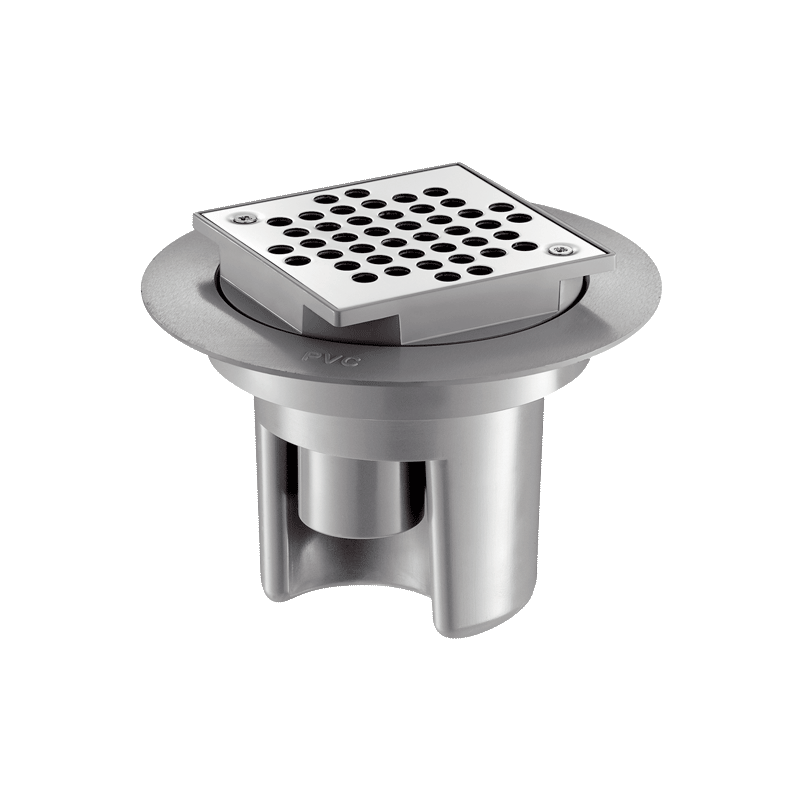

Floor trap
Ref. 682001
Floor trap for hard floors (tiles or concrete floors) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
100x100mm bright polished stainless steel grid.
Horizontal (elbow joint not supplied) or vertical outlet Ø 40mm integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 80mm with extension.
Grid fixed with 2 stainless steel screws.
30-year warranty.
Flow rate 36 lpm (meets standards).
Water level 50mm.
100x100mm bright polished stainless steel grid.
Horizontal (elbow joint not supplied) or vertical outlet Ø 40mm integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 80mm with extension.
Grid fixed with 2 stainless steel screws.
30-year warranty.
Advantages
Floor trap
Ref. 682001

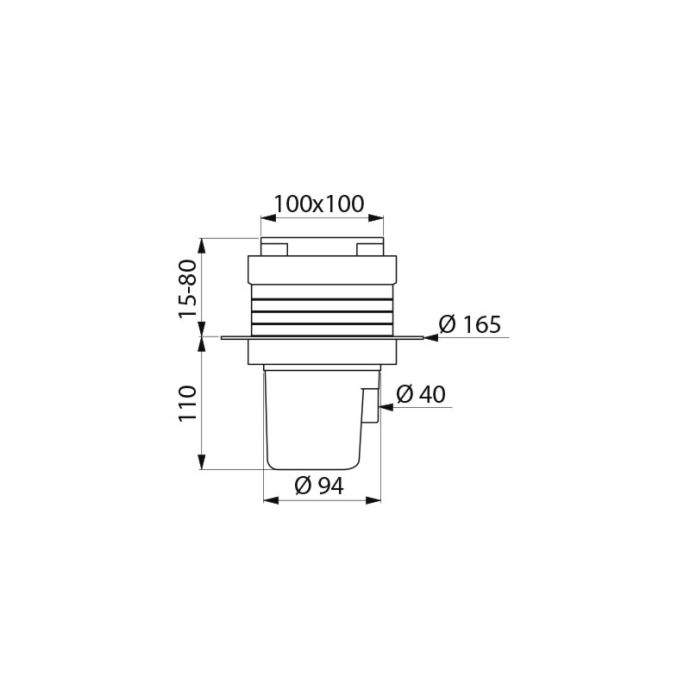

Height
190mm max
Length 100mm
Width 100mm
Flow rate 36 lpm
Certificates
Warranty
Length 100mm
Width 100mm
Flow rate 36 lpm
Certificates
Warranty
Floor trap
Ref. 682001
To download one or several documents linked to this product, please select the type of file you require
