Ref. 684000
With plate
8 variants
683002DE -
Ø 50mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm
682001 -
Ø 40mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
682001DE -
Ø 50mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
682001UK -
Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
683001 -
Ø 40mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683001UK -
Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683002 -
Ø 40mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm
683002UK -
Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm

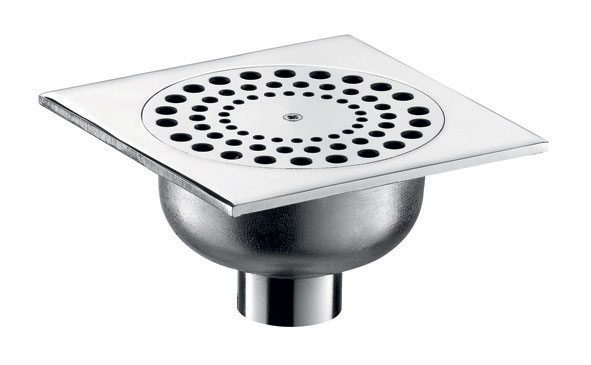

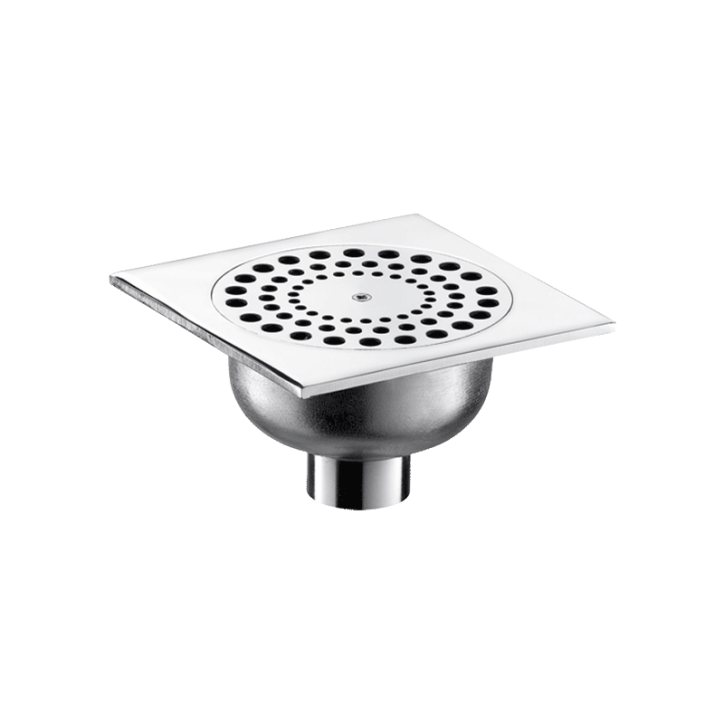

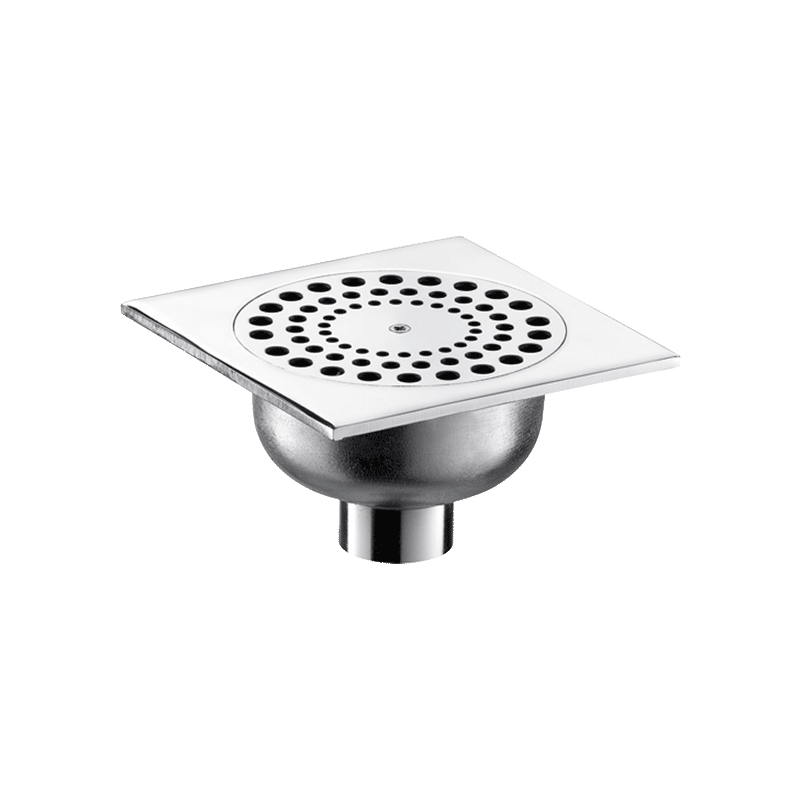

Floor trap
Ref. 684000
Floor trap for hard floors:
Flow rate 18 lpm.
Water level 18mm.
Stainless steel body 140 x 140mm.
Bright polished stainless steel grid fixed by 1 stainless steel screw.
PVC bell.
Vertical outlet Ø 40mm (provide elbow for horizontal outlets).
For hard floors (tiled or concrete).
30-year warranty.
Flow rate 18 lpm.
Water level 18mm.
Stainless steel body 140 x 140mm.
Bright polished stainless steel grid fixed by 1 stainless steel screw.
PVC bell.
Vertical outlet Ø 40mm (provide elbow for horizontal outlets).
For hard floors (tiled or concrete).
30-year warranty.
Advantages
Floor trap
Ref. 684000
Height
75mm
Length 140mm
Width 140mm
Flow rate 18 lpm
Warranty
Length 140mm
Width 140mm
Flow rate 18 lpm
Warranty
Floor trap
Ref. 684000
