Ref. 683001
For tiled or concrete floors
8 variants
683002DE -
Ø 50mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm
682001 -
Ø 40mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
682001DE -
Ø 50mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
682001UK -
Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
683001UK -
Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683002 -
Ø 40mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm
683002UK -
Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm
684000 -
Ø 40mm outlet- tiled or concrete floors- 140 x 140mm

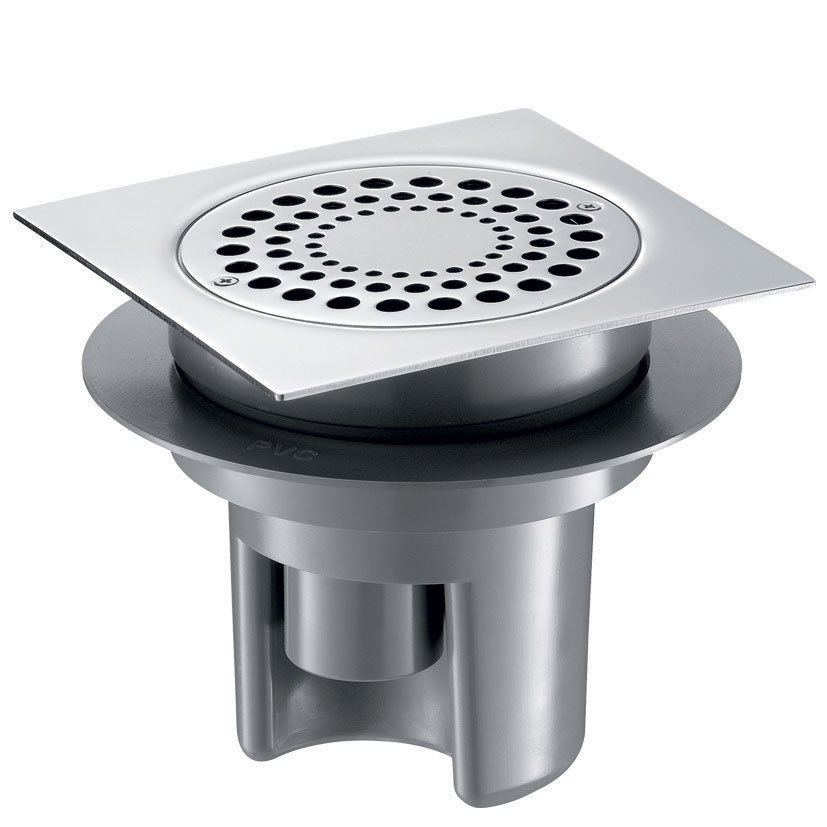

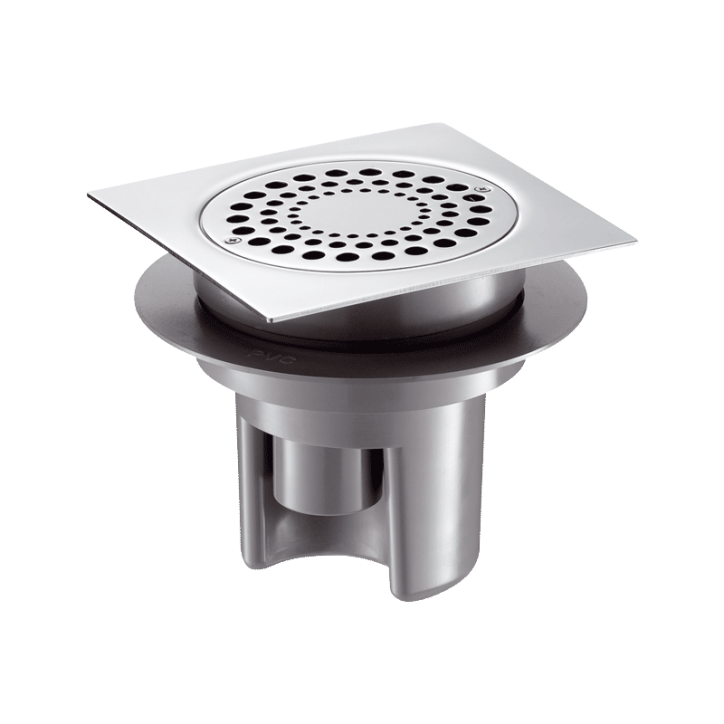

Floor trap
Ref. 683001
Floor trap for hard floors (tiles or concrete) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
150x150mm bright polished stainless steel plate and grid.
Horizontal (elbow joint not supplied) or vertical outlet Ø 40mm integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grid fixed with 2 stainless steel screws.
30-year warranty.
Flow rate 36 lpm (meets standards).
Water level 50mm.
150x150mm bright polished stainless steel plate and grid.
Horizontal (elbow joint not supplied) or vertical outlet Ø 40mm integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grid fixed with 2 stainless steel screws.
30-year warranty.
Advantages
Floor trap
Ref. 683001

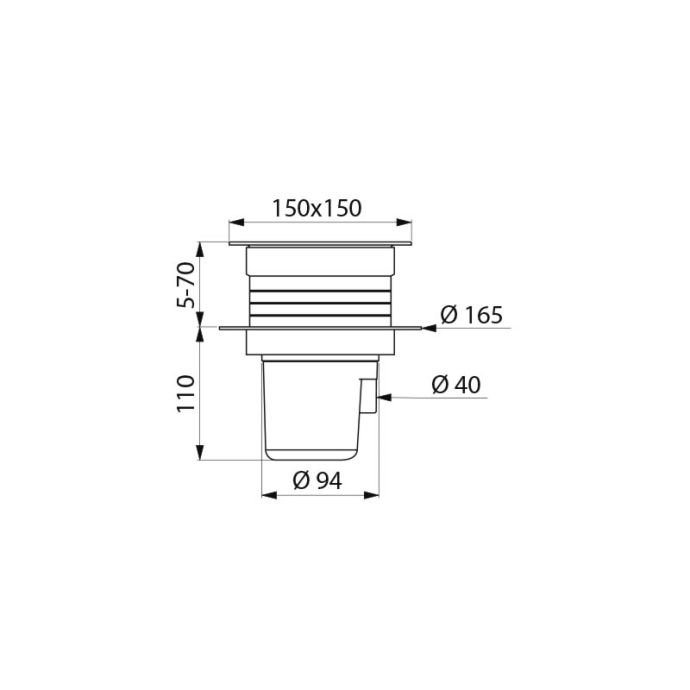

Height
180mm max
Length 150mm
Width 150mm
Flow rate 36 lpm
Certificates
Warranty
Length 150mm
Width 150mm
Flow rate 36 lpm
Certificates
Warranty
