Floor trap

Ref. 683002DE

For soft or vinyl floors

8 variants

682001 - Ø 40mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm

682001DE - Ø 50mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm

682001UK - Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm

683001 - Ø 40mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm

683001UK - Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm

683002 - Ø 40mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm

683002UK - Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm

684000 - Ø 40mm outlet- tiled or concrete floors- 140 x 140mm

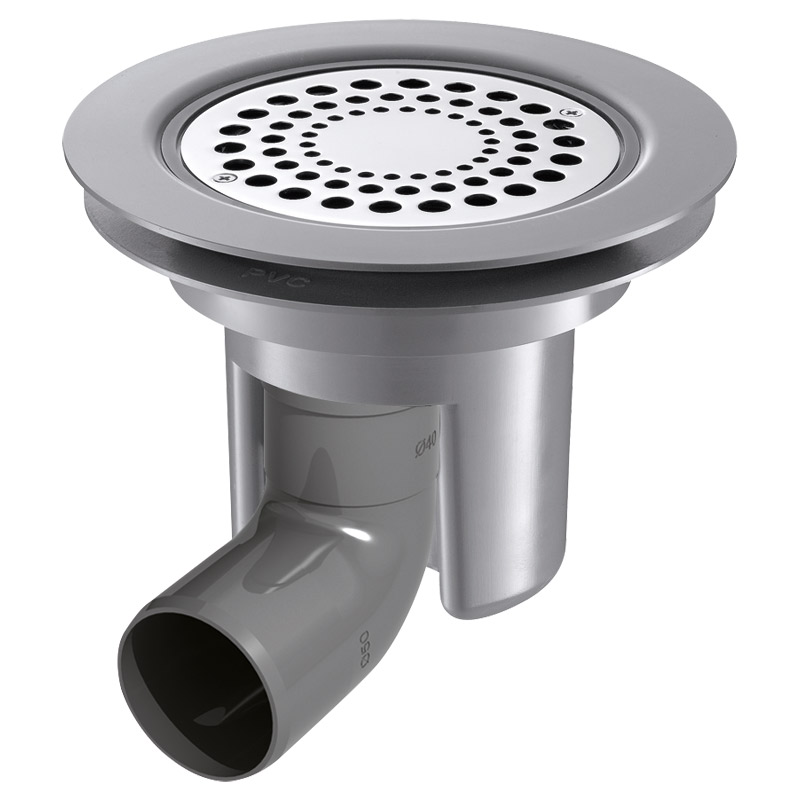

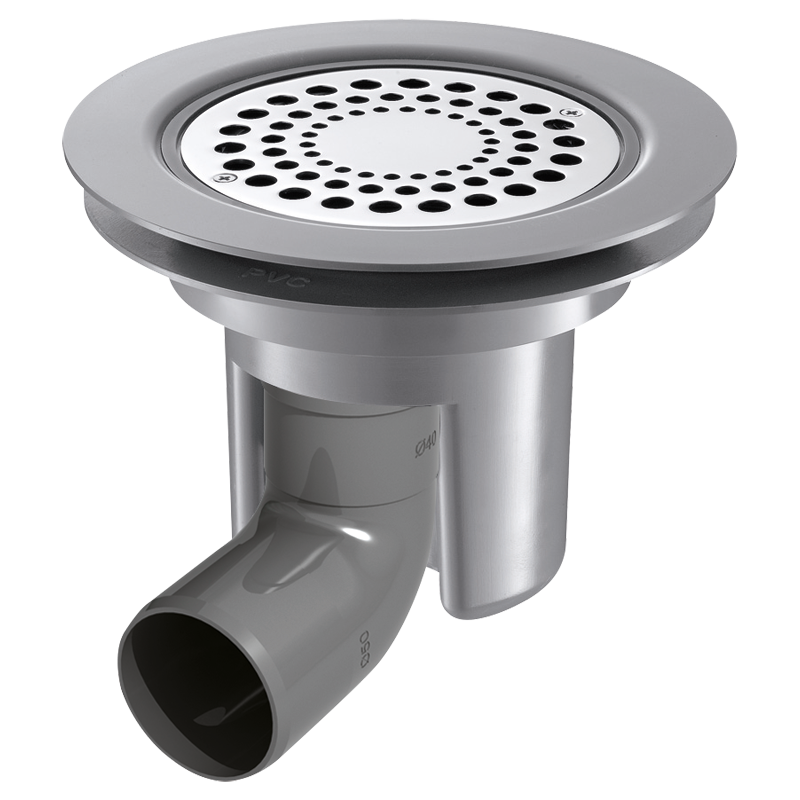

Floor trap

Ref. 683002DE

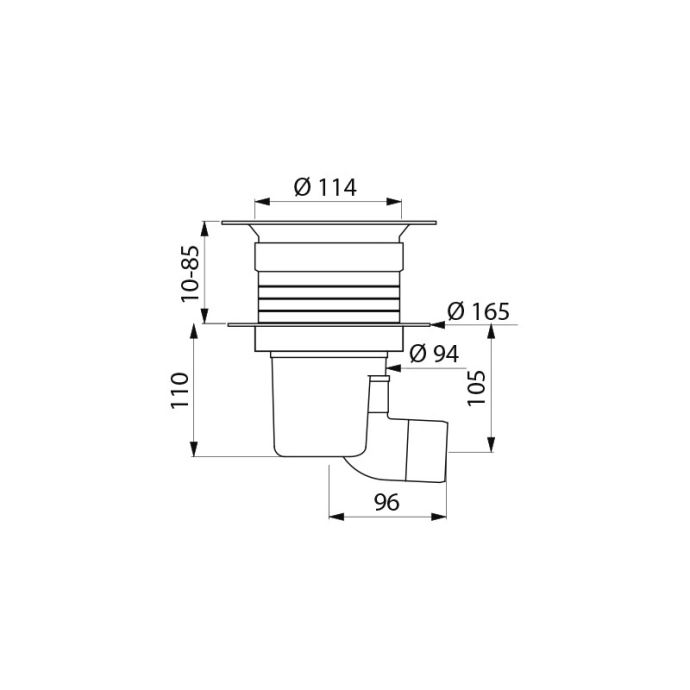

Floor trap for soft or vinyl floors with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
Bright polished stainless steel grid Ø 114mm.
Horizontal (elbow joint Ø 40mm) integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
Height adjusts up to 85mm with extension.
Grid fixed by 2 stainless steel screws.
30-year warranty.

Advantages

Adapted to floor type, adjustable height

Plunger with handle, smooth body

Tamperproof stainless steel grid

Associated products

SECURITHERM shower panel

Electronic battery-operated thermostatic

Ref. 792400

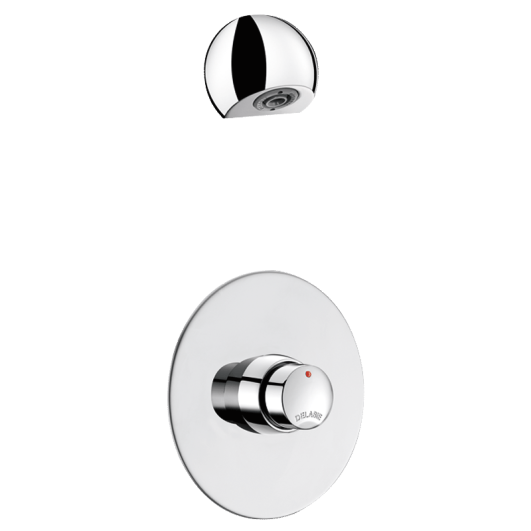

TEMPOSOFT 2 time flow shower kit
