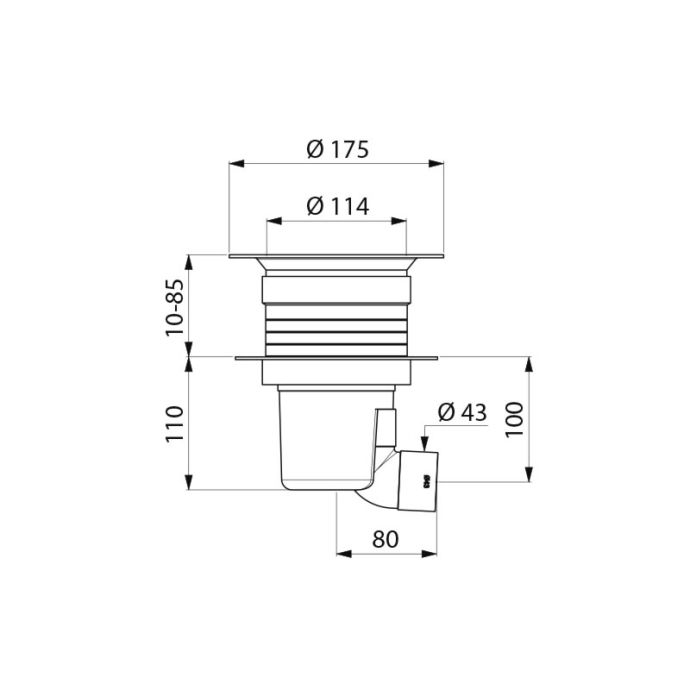

Adjustable height floor trap for soft or vinyl floors:
Flow rate 36 lpm (meets standards).
Water level 50mm.
Bright polished stainless steel grid Ø 114mm.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
Height adjusts up to 85mm with extension.
Grid fixed by two stainless steel screws.
30-year warranty.
Advantages
Trap adapted to floor type, adjustable height
Plunger with handle, body free of impurities
Tamperproof stainless steel grid

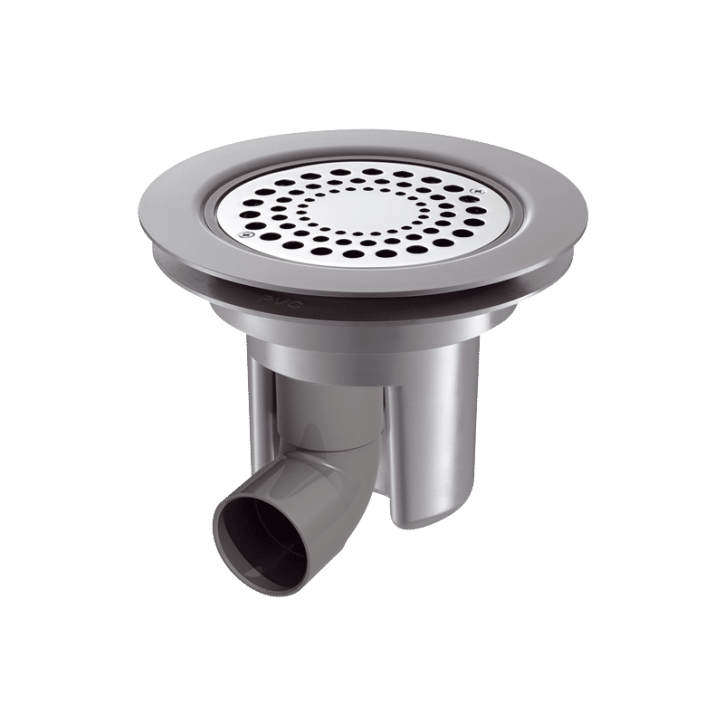

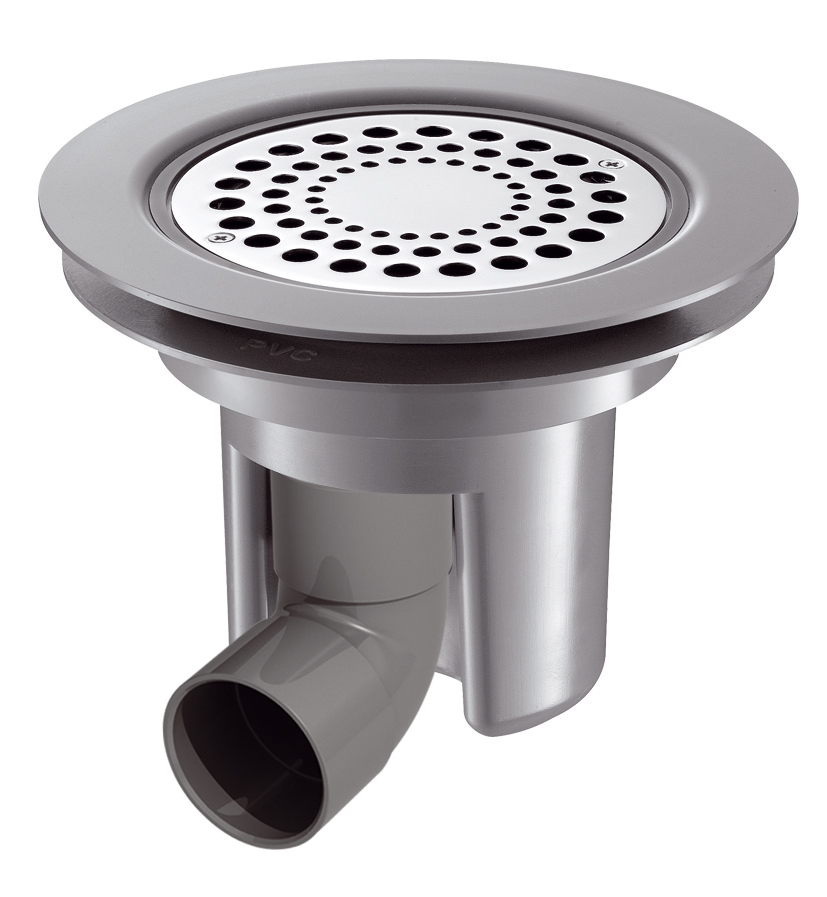

Floor trap
Ref. 683002UK
Height
195mm max
Flow rate
36 lpm
Warranty
Floor trap
Ref.
683002UK
To download one or several documents linked to this product, please select the type of file you require
