Ref. 732012
For mixed water from 34 - 60°C
6 variants
732116 -
Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732216 -
Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732016 -
Chrome-plated body - Ø 15mm compression fittings
732115 -
Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732230 -
Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732515 -
Connection kit for thermostatic mixing valves

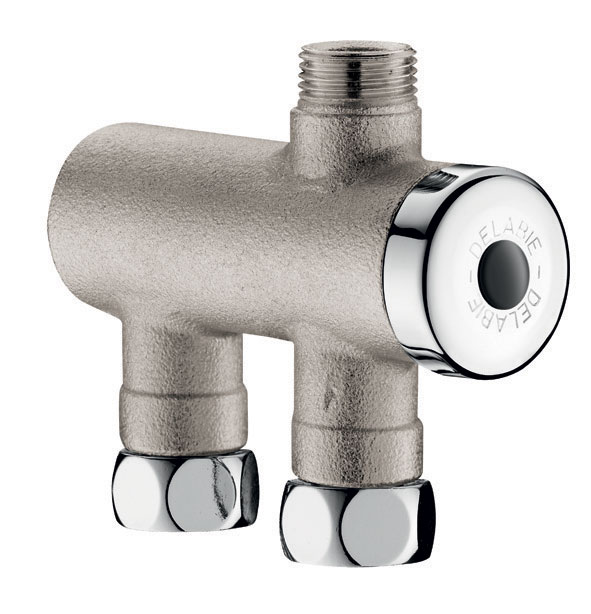

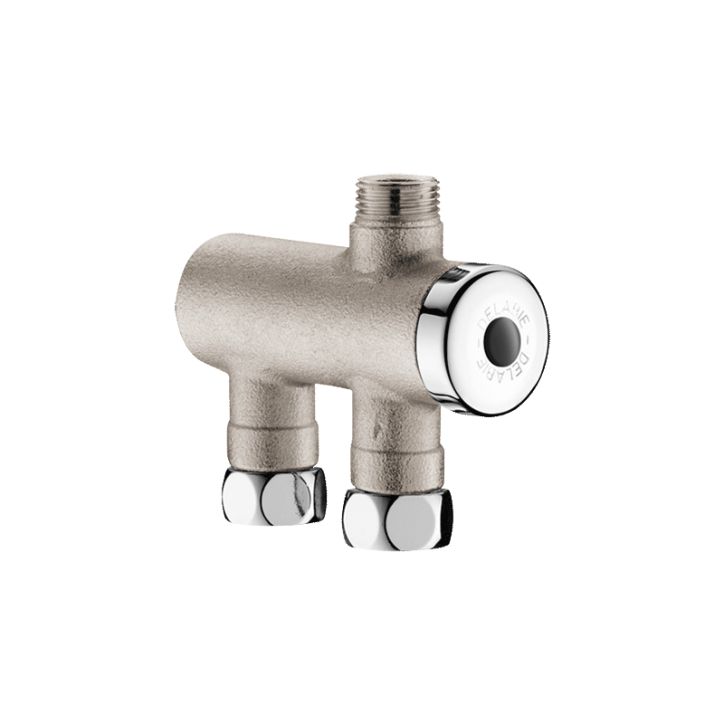

PREMIX NANO thermostatic mixing valve
Ref. 732012
Thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of cold water supply failure.
Cold shower failsafe: automatic water shut-off in case of hot water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.

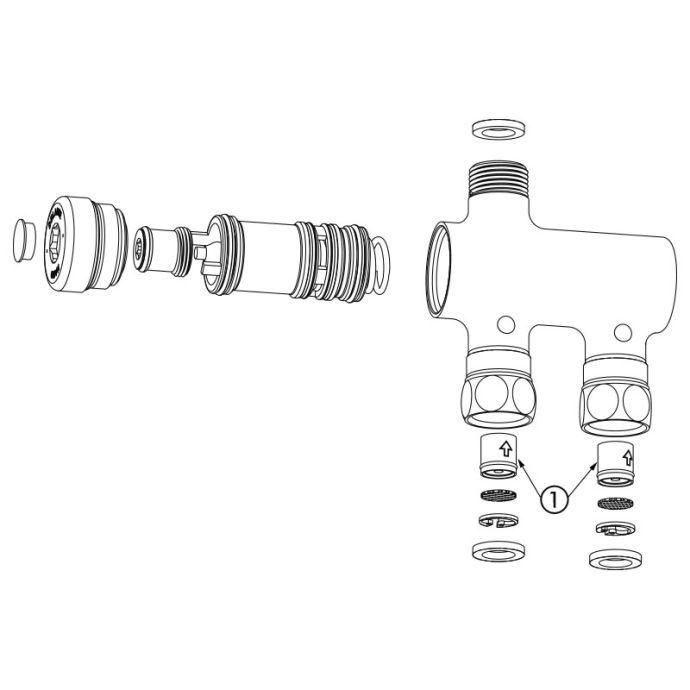

Non-return valves and filters.
Minimum flow rate for operation: 3 lpm.
Thermal shocks are possible.
Nickel-plated body, inlets F3/8" and outlet M3/8".
30-year warranty.
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of cold water supply failure.
Cold shower failsafe: automatic water shut-off in case of hot water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Minimum flow rate for operation: 3 lpm.
Thermal shocks are possible.
Nickel-plated body, inlets F3/8" and outlet M3/8".
30-year warranty.
Advantages
PREMIX NANO thermostatic mixing valve
Ref. 732012
Connector
3/8"
Technology Thermostatic

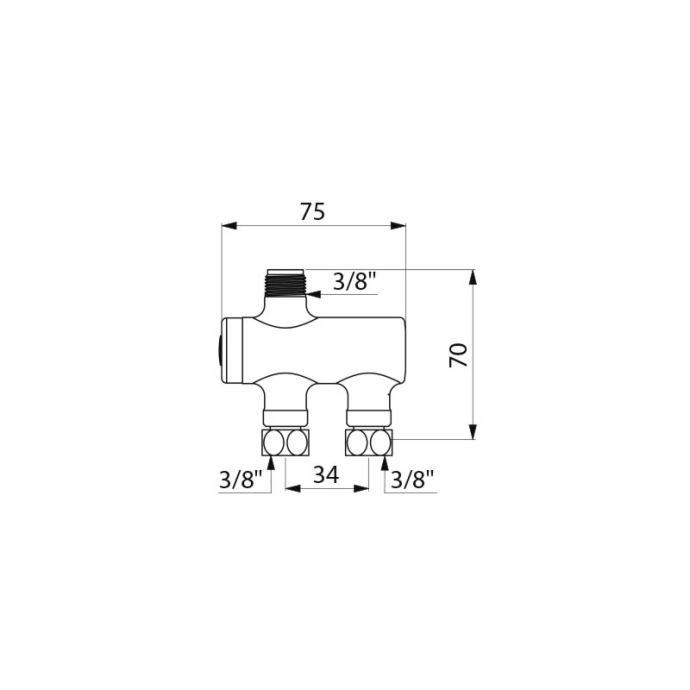

Height 70mm
Length 75mm
Finish nickel-plated
Certificates
Warranty
Repairability
Technology Thermostatic
Height 70mm
Length 75mm
Finish nickel-plated
Certificates
Warranty
Repairability
PREMIX NANO thermostatic mixing valve
Ref. 732012
To download one or several documents linked to this product, please select the type of file you require
PREMIX NANO thermostatic mixing valve
Ref. 732012
