Ref. 732230
For mixed water from 34 - 60°C
6 variants
732012 -
Nickel-plated body - Ø 15mm compression fittings
732116 -
Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732216 -
Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732016 -
Chrome-plated body - Ø 15mm compression fittings
732115 -
Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732515 -
Connection kit for thermostatic mixing valves

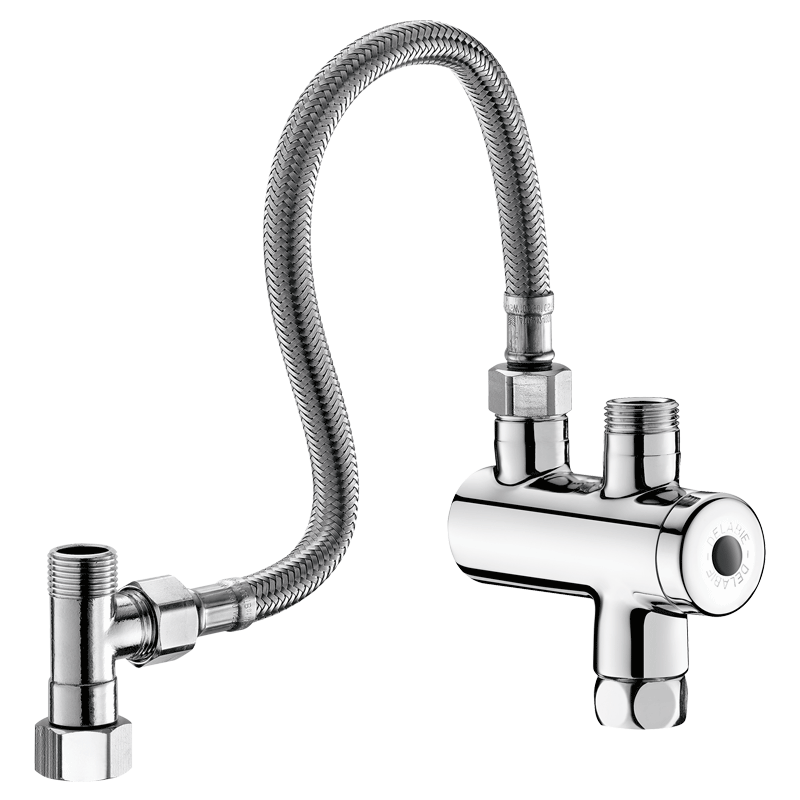

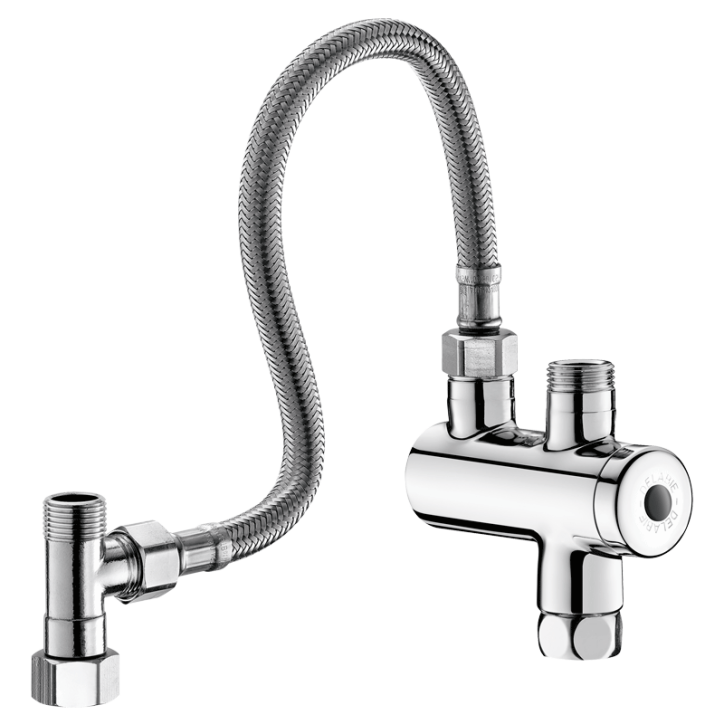

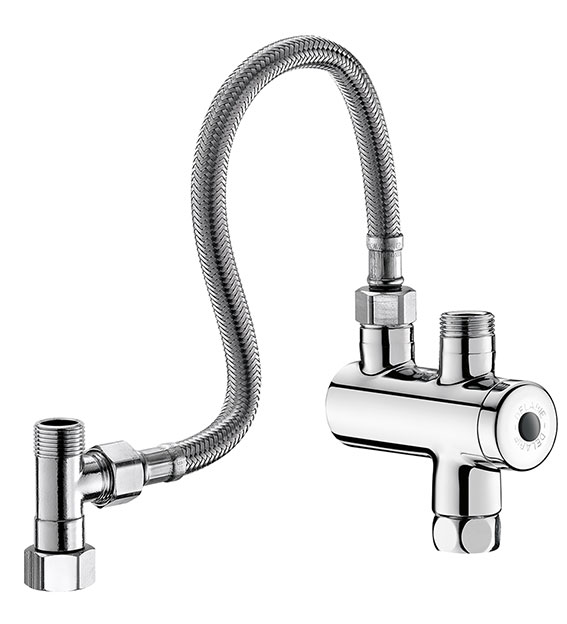

PREMIX NANO thermostatic mixing valve
Ref. 732230
Thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of cold water supply failure.
Cold shower failsafe: automatic shut-off in case of hot water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Recommended flow rate range: 3 - 12 lpm.
Thermal shocks are possible.
Polished chrome body, hot water inlet F3/8", cold water inlet M3/8"and mixed water outlet M3/8".

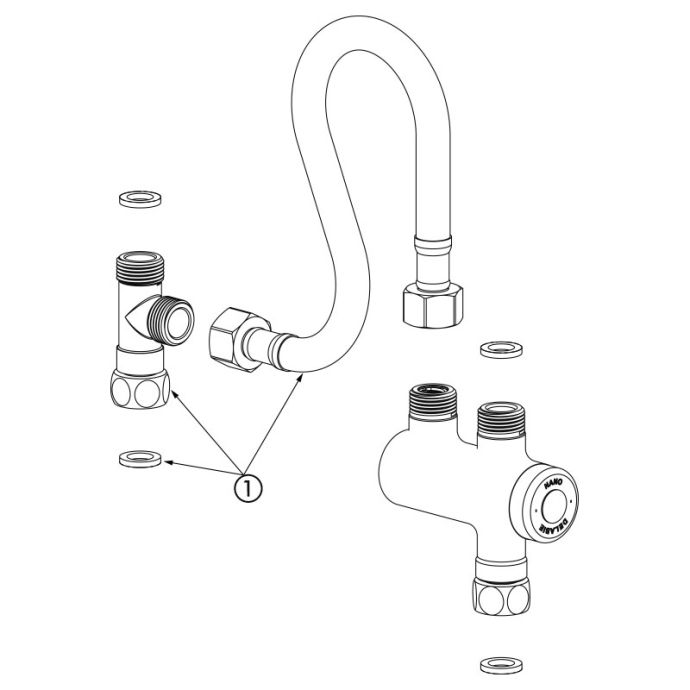

Supplied with 3/8" connection kit.
30-year warranty.
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of cold water supply failure.
Cold shower failsafe: automatic shut-off in case of hot water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Recommended flow rate range: 3 - 12 lpm.
Thermal shocks are possible.
Polished chrome body, hot water inlet F3/8", cold water inlet M3/8"and mixed water outlet M3/8".
Supplied with 3/8" connection kit.
30-year warranty.
Advantages
PREMIX NANO thermostatic mixing valve
Ref. 732230
Connector
3/8"
Technology Thermostatic

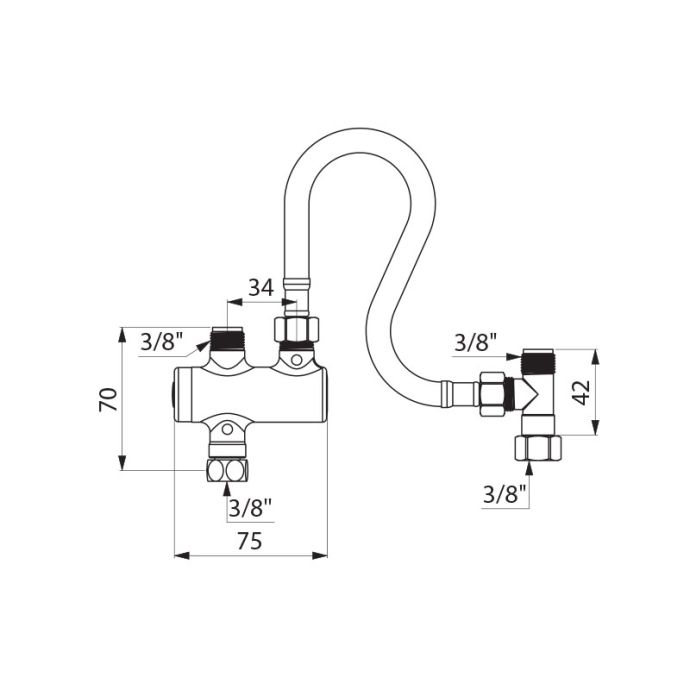

Height 70mm
Finish Chrome-plated
Certificates
Warranty
Repairability
Technology Thermostatic
Height 70mm
Finish Chrome-plated
Certificates
Warranty
Repairability
PREMIX NANO thermostatic mixing valve
Ref. 732230
To download one or several documents linked to this product, please select the type of file you require
