Ref. 732216
For mixed water from 34 - 60°C
6 variants
732012 -
Nickel-plated body - Ø 15mm compression fittings
732116 -
Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732016 -
Chrome-plated body - Ø 15mm compression fittings
732115 -
Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732230 -
Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732515 -

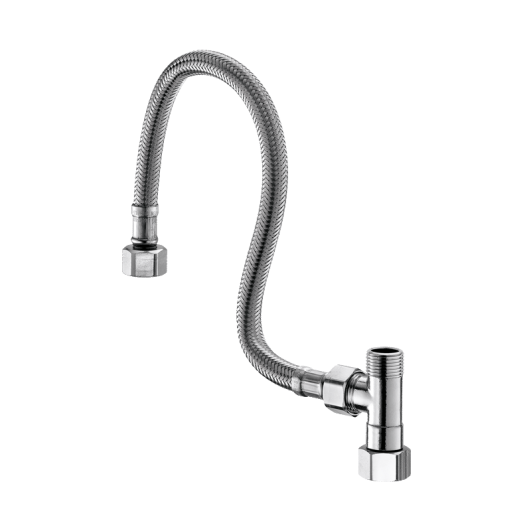

Connection kit for thermostatic mixing valves

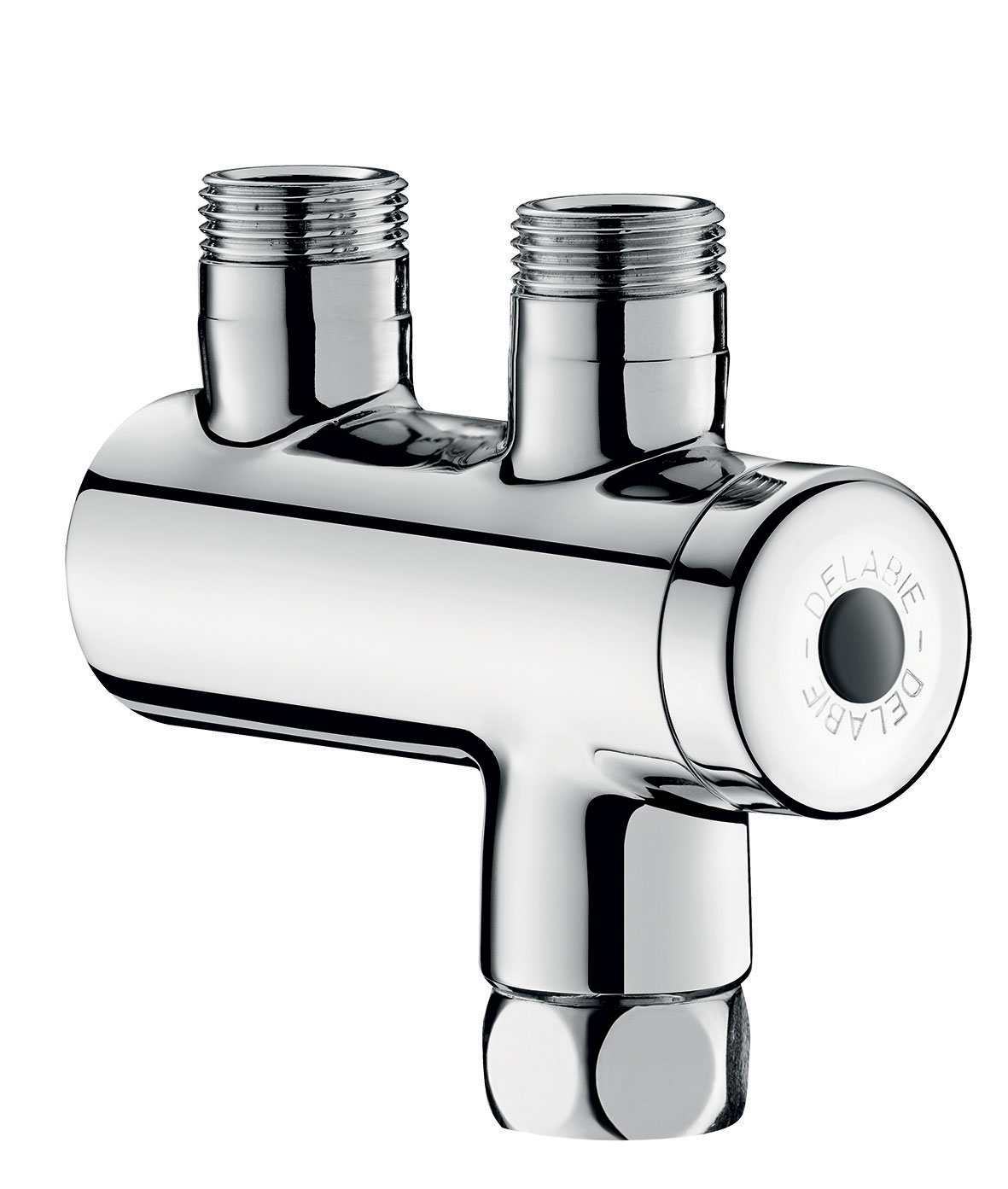

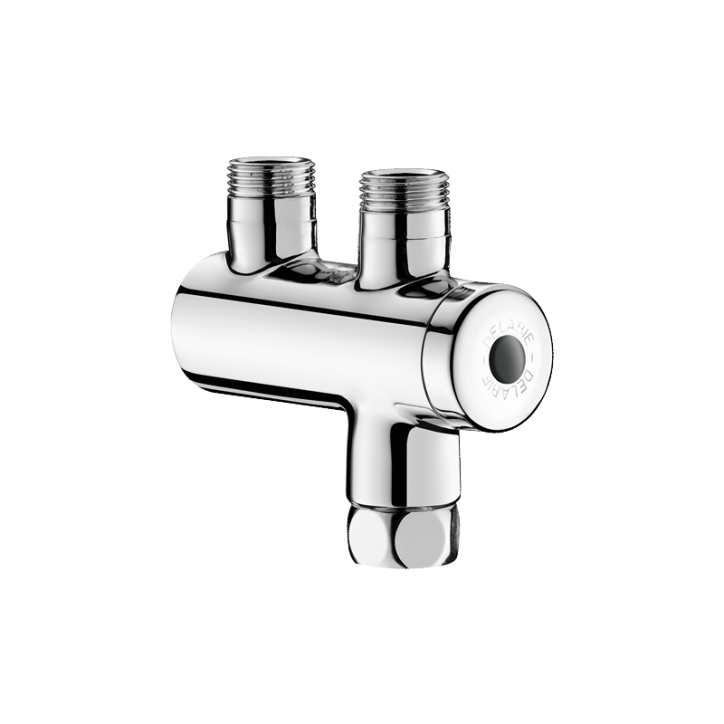

PREMIX NANO thermostatic mixing valve
Ref. 732216
Thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of cold water supply failure.
Cold shower failsafe: automatic water shut-off in case of hot water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Minimum flow rate for operation: 3 lpm.
Thermal shocks are possible.
Polished chrome body, hot water inlet F3/8", cold water inlet M3/8"and mixed water outlet M3/8".
30-year warranty.
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of cold water supply failure.
Cold shower failsafe: automatic water shut-off in case of hot water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Minimum flow rate for operation: 3 lpm.
Thermal shocks are possible.
Polished chrome body, hot water inlet F3/8", cold water inlet M3/8"and mixed water outlet M3/8".
30-year warranty.
Advantages
PREMIX NANO thermostatic mixing valve
Ref. 732216
Connector
3/8"
Technology Thermostatic

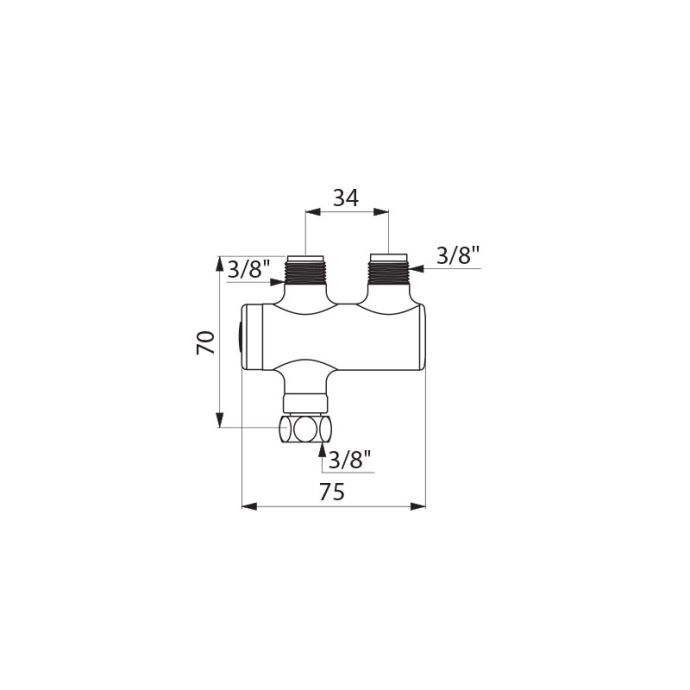

Height 70mm
Width 75mm
Finish chrome-plated
Certificates
Warranty
Repairability
Technology Thermostatic
Height 70mm
Width 75mm
Finish chrome-plated
Certificates
Warranty
Repairability
PREMIX NANO thermostatic mixing valve
Ref. 732216
To download one or several documents linked to this product, please select the type of file you require
PREMIX NANO thermostatic mixing valve
Ref. 732216
