Ref. 732115
For mixed water from 34 - 60°C
6 variants
732012 -
Nickel-plated body - Ø 15mm compression fittings
732116 -
Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732216 -
Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732016 -
Chrome-plated body - Ø 15mm compression fittings
732230 -
Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732515 -
Connection kit for thermostatic mixing valves

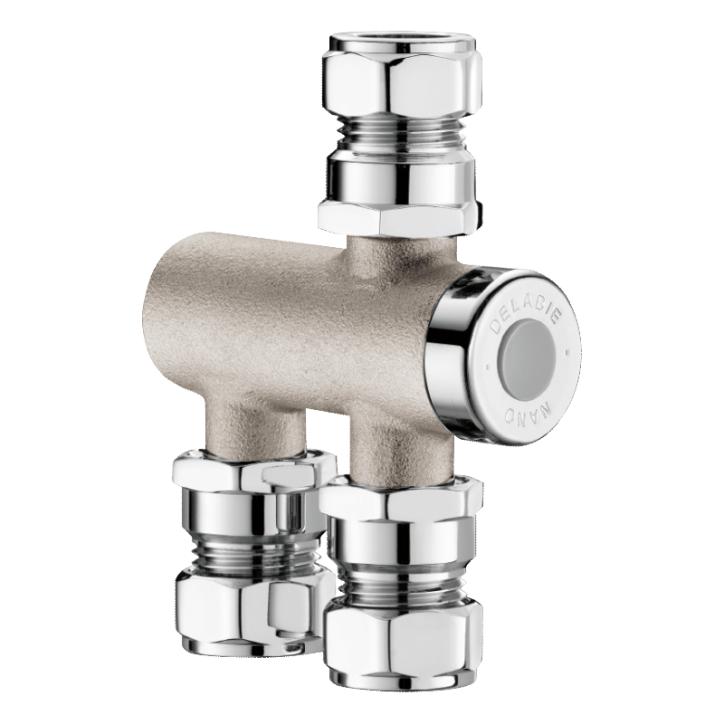

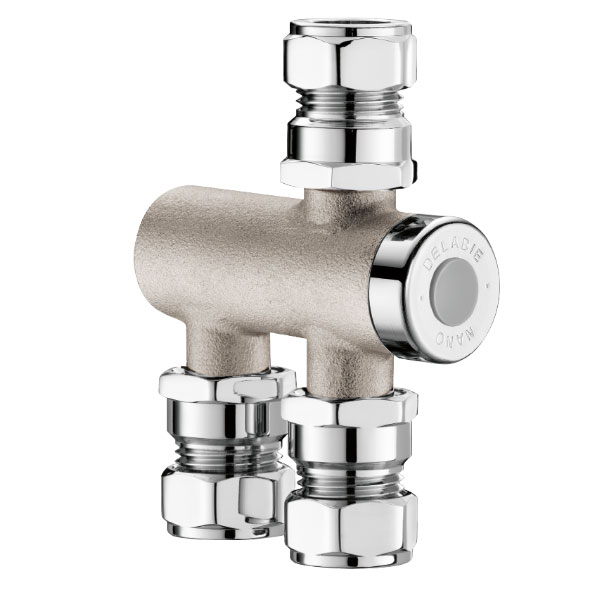

PREMIX NANO thermostatic mixing valve
Ref. 732115
Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Brass body.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Nickel-plated brass body M½" inlets and Ø 15mm conical outlets.
30-year warranty.
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Brass body.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Nickel-plated brass body M½" inlets and Ø 15mm conical outlets.
30-year warranty.
Advantages
PREMIX NANO thermostatic mixing valve
Ref. 732115
Connector

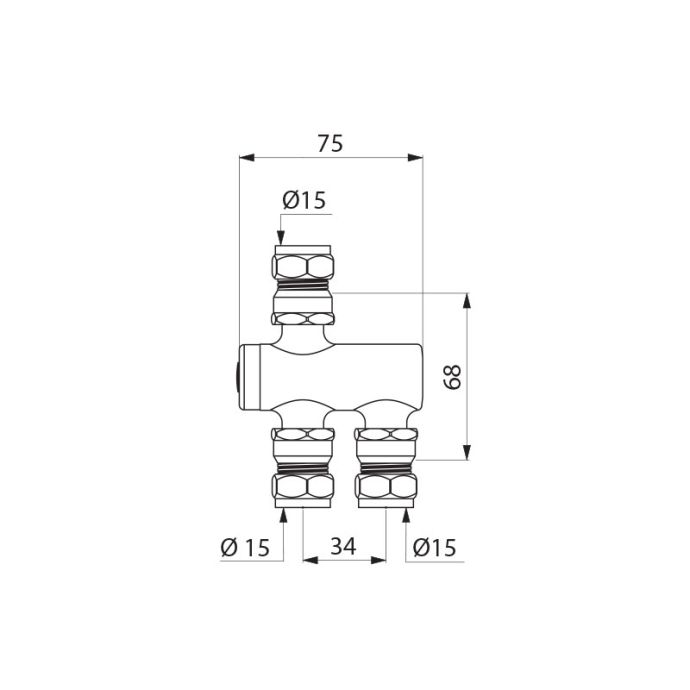

M½" Ø 15mm
Technology Thermostatic
Height 70mm
Finish Nickel-plated
Certificates
Warranty
Repairability
Technology Thermostatic
Height 70mm
Finish Nickel-plated
Certificates
Warranty
Repairability
PREMIX NANO thermostatic mixing valve
Ref. 732115
To download one or several documents linked to this product, please select the type of file you require
PREMIX NANO thermostatic mixing valve
Ref. 732115
